Chief XSM1U Fusion Series Fixed Wall Mount for 55 to 100" Displays

• For Displays from 55" to 100"
• Supports up to 250 lbs.
• Fits VESA Patterns 100 x 100 to 800 x 500 mm
• Lateral Shift Adjustments of up to 21.4"
• Tool-Free Micro Adjustments for Exact Leveling

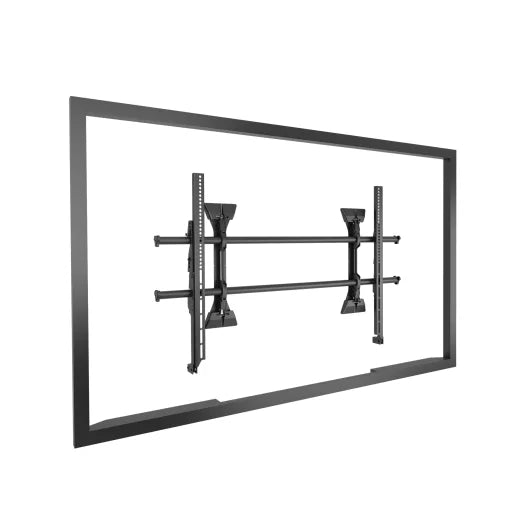

Chief XSM1U Fixed Wall Mount

OVERVIEW

The Chief XSM1U is a high-performance fixed wall mount designed specifically for extra-large displays, making it an ideal choice for professional and commercial installations. This mount supports displays ranging from 55" to 100" and up to 250 lbs, providing a secure and stable mounting solution. The XSM1U features a low-profile design, advanced adjustability, and robust construction, ensuring a sleek appearance and reliable support for heavy displays. It is perfect for applications in conference rooms, digital signage, control rooms, and other environments requiring a large display.

INSTALLATION AND COMPATIBILITY

The Chief XSM1U is designed for quick and efficient installation, even for larger and heavier displays. It includes universal interface brackets that accommodate a wide range of VESA patterns, making it compatible with most extra-large displays. The mount comes with detailed installation instructions and all necessary hardware, ensuring a straightforward setup process. The integrated cable management system helps maintain a clean and organized appearance.

KEY FEATURES

1. Universal Compatibility: The XSM1U is compatible with a wide range of extra-large displays, supporting VESA patterns up to 1050 x 600 mm, making it suitable for various brands and models.
2. Low-Profile Design: The mount has a minimal depth, positioning the display close to the wall for a clean and professional look, ideal for environments where aesthetics are important.
3. Lateral Shift: Built-in lateral shift capability allows for easy centering of the display, even when the studs are not perfectly aligned, providing flexibility in installation.
4. ClickConnect Technology: This feature provides an audible click to confirm that the display is securely attached to the mount, ensuring safety and confidence during installation.
5. Centerless Shift: Allows post-installation lateral shift adjustment without the need for tools, making it easy to fine-tune the display's position.
6. ControlZone Leveling: Post-installation fine-tuning of height and leveling allows for precise alignment of the display, ensuring a perfect fit.
7. Tool-Free Micro Adjustments: Facilitates precise vertical and tilt adjustments without the need for tools, allowing for a perfectly aligned display.
8. Integrated Cable Management: Keeps cables organized and protected, ensuring a clean and professional installation.
9. Heavy-Duty Construction: Constructed with high-quality materials, the XSM1U is designed for durability and long-term use, even in demanding environments.
10. Security Features: The mount includes provisions for padlocks and other security devices, making it suitable for use in public or semi-public areas.

APPLICATIONS

The XSM1U is perfect for:

• Corporate boardrooms and conference rooms
• Digital signage in public areas
• Control rooms and monitoring centers
• Educational institutions
• Retail and hospitality settings

CONCLUSIONS

The Chief XSM1U Fixed Wall Mount is a robust and versatile mounting solution for extra-large displays. Its advanced features, such as ClickConnect Technology, Centerless Shift, and ControlZone Leveling, provide installers with the tools they need to achieve a perfect installation. With its low-profile design and heavy-duty construction, the XSM1U is an excellent choice for any professional setting requiring a reliable and aesthetically pleasing display mount.

• Compatibility: VESA patterns 100 x 100 - 800 x 500 mm
• Display Size Range: 55" to 100"
• Weight Capacity: Up to 250 lbs (113.4 kg)
• Mounting Profile: Approximately 1.85" (47 mm) from the wall
• Adjustments:
  • Lateral Shift: Yes, up to 21.4" (10.7" left/right)
  • Micro Adjustments: Yes, tool-free vertical and tilt
  • Leveling Adjustment: Yes, ControlZone Leveling
• Material: Steel construction with a durable powder coat finish
• Color: Black
• Dimensions:
  • Height: 24.6" (625 mm)
  • Width: 45.28" (1150 mm)
  • Depth: 1.85" (47 mm)
• Product Weight: 30 lbs (13.6 kg)
• Security: Padlock and other security options available
• Warranty: Limited lifetime warranty

Chief Fusion Wall Mount Brochure

Chief Fusion Installation Manual for XSM1U / XTM1U

Chief Fusion XSM1U Specifications
