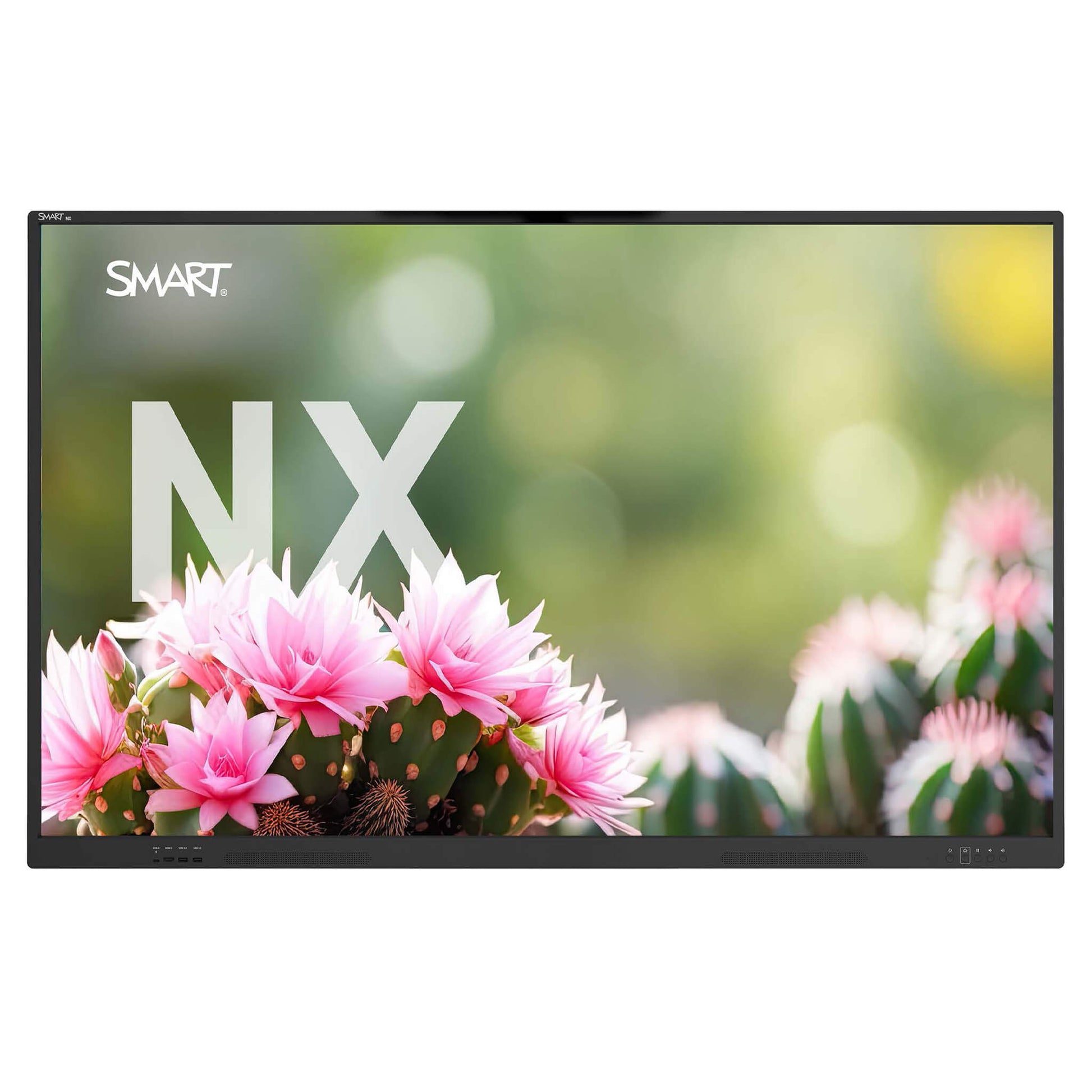

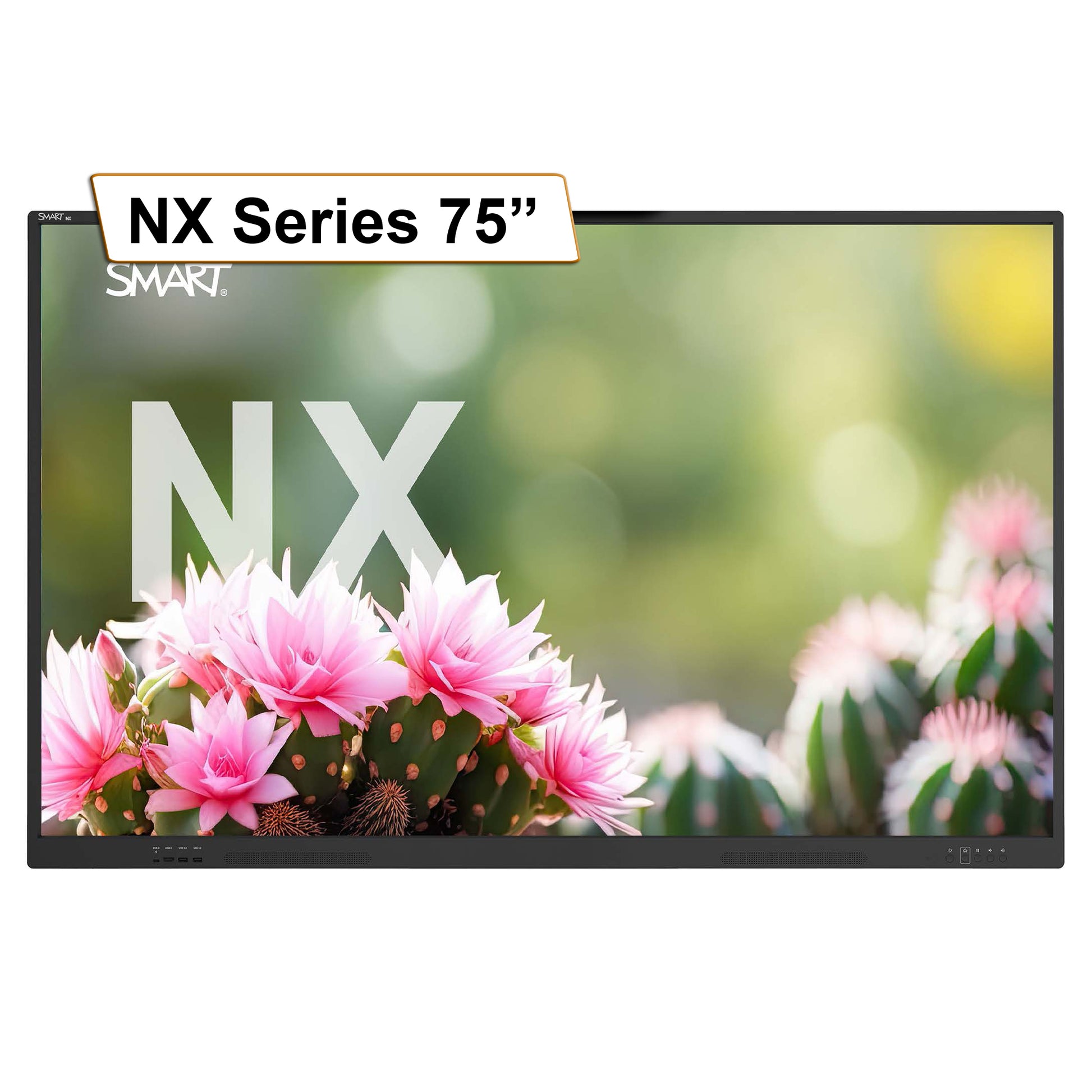

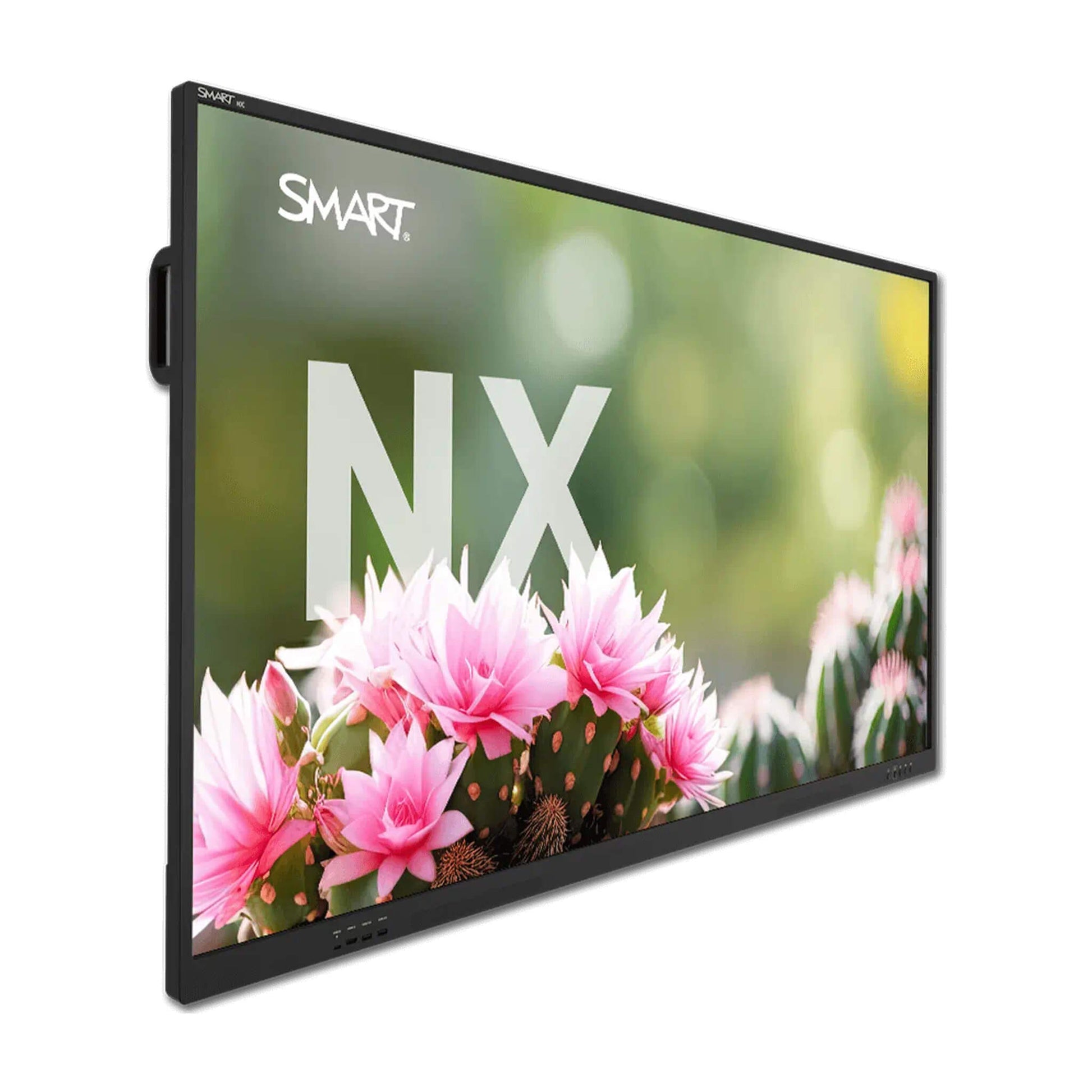

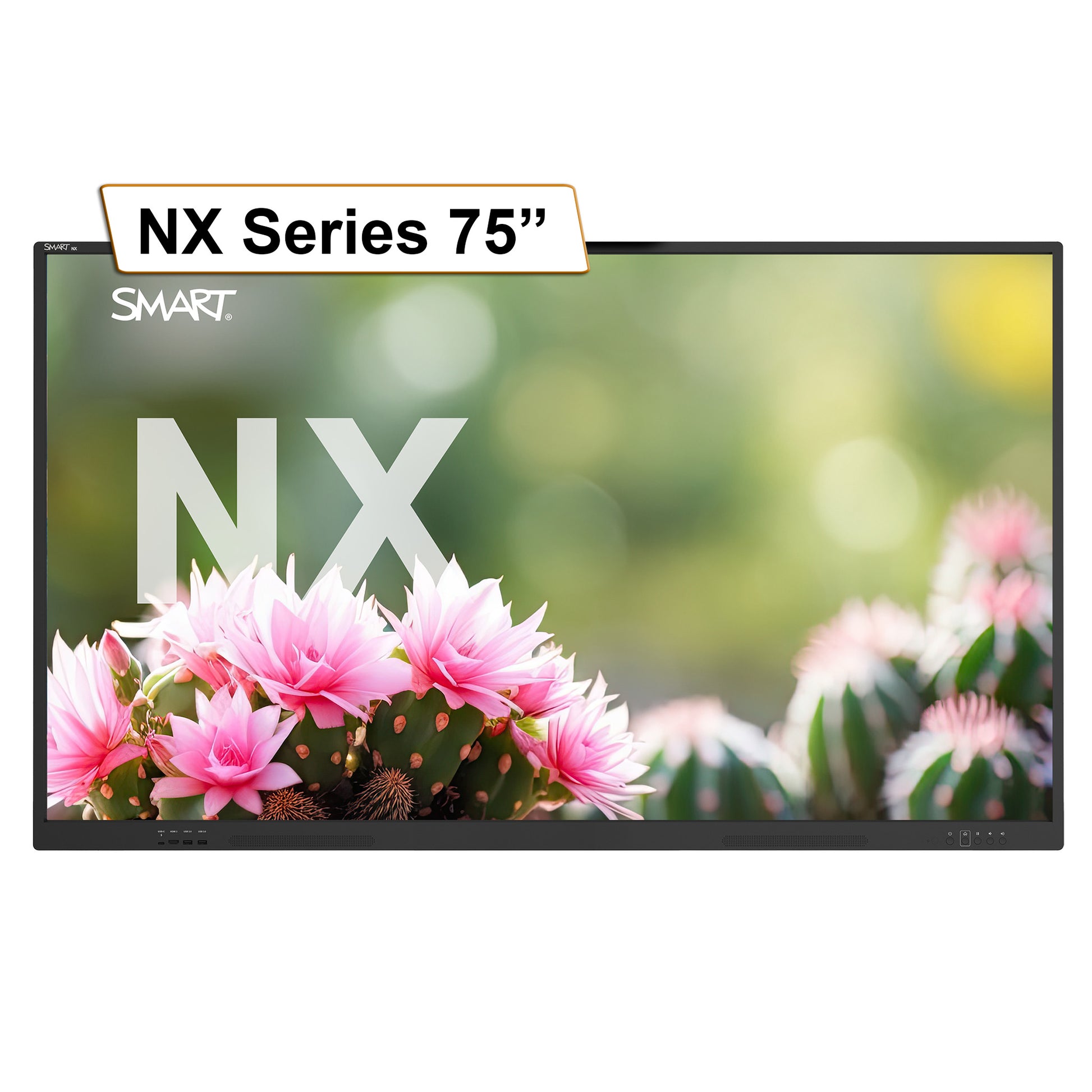

75" SMART Board NX Series Display with Screen Sharing - NX175

The 75″ SMART Board NX Series Display with Screen Sharing (NX175) is a non-interactive 4K UHD commercial display designed for classrooms, digital signage, and companion use alongside SMART interactive boards. It delivers reliable performance, flexible casting, and low total cost—without built-in touch functionality.

Purpose-built for education environments, the NX175 serves as an overflow display, secondary classroom screen, or campus-wide signage solution.

Key Features

75″ 4K UHD Display
3840 × 2160 LED panel with 178° viewing angle, ≤8 ms response time, and 50,000-hour lifespan.

Anti-Glare Tempered Glass
Bonded, heat-tempered glass improves visibility in bright classrooms and reduces reflections.

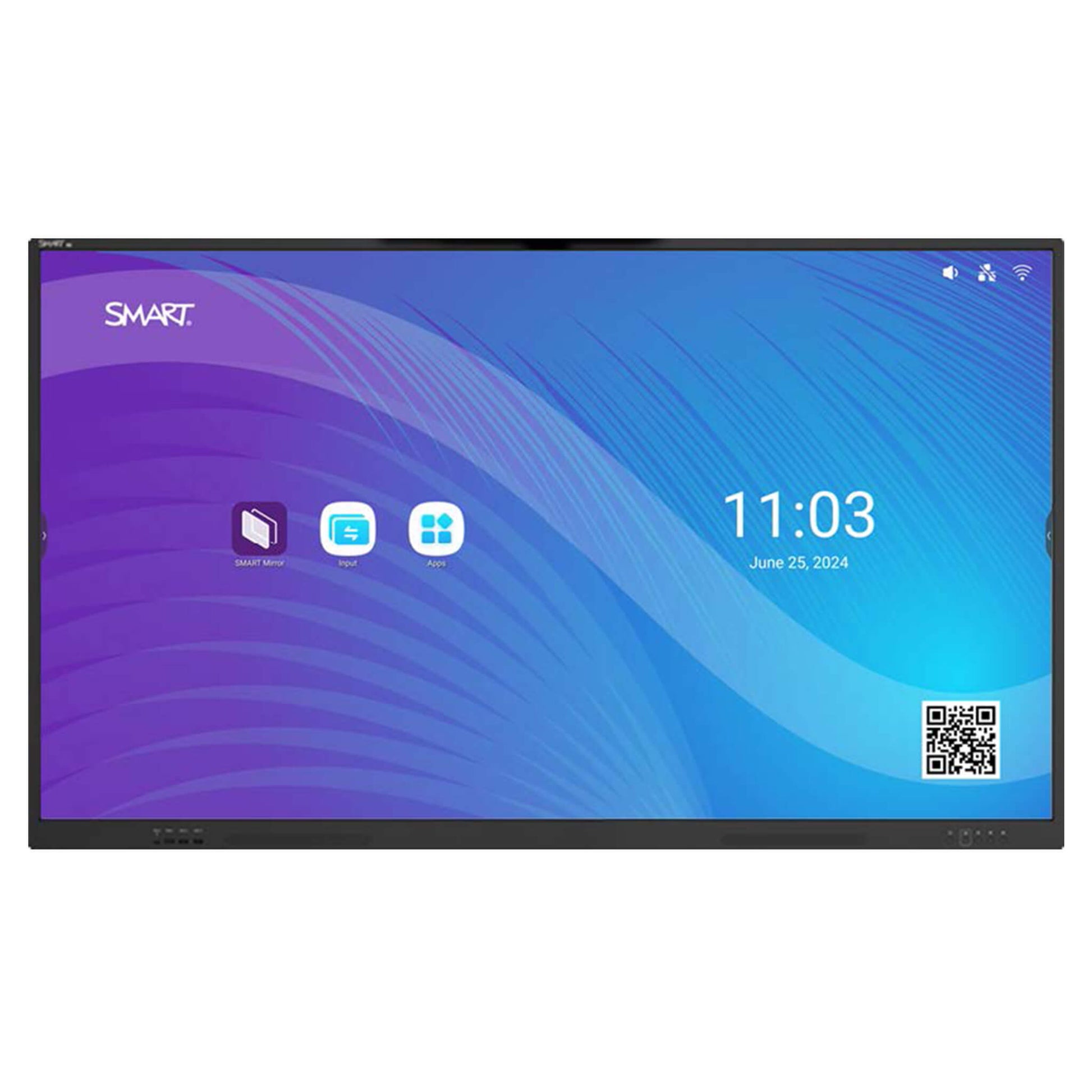

Built-In Android 13 System
Includes 8 GB RAM / 64 GB storage with browser, input selection, and OTA updates—no PC required.

Any-Device Screen Sharing
Supports SMART Mirror, AirPlay, Miracast, Google Cast, and browser-based casting for easy walk-up presentations.

Integrated Audio System
Dual 20W speakers provide clear, room-filling sound for classrooms and presentation spaces.

Enterprise AV Connectivity

• 3 × HDMI 2.0 (1 front / 2 rear)
• DisplayPort 1.2
• VGA
• HDMI out
• 3.5 mm audio in/out
• S/PDIF
• RS-232 control

Modern USB-C Integration
Dual USB-C (4K60) with 15W power delivery (front) for single-cable laptop connection.

Peripheral Connectivity
Includes 4 × USB-A 3.2 Gen 1 + 1 × USB-A 2.0 for accessories and storage.

Network & Wireless Ready

• RJ45 LAN (in/out)
• Wi-Fi 6
• Bluetooth 5.0

Energy Efficient Design
ENERGY STAR® compliant with ~79W typical power consumption and <0.5W standby.

Expandable OPS Slot
Supports SMART OPS/PCM modules (e.g., AMG1) for added computing capability.

Package Includes

• SMART NX175 75″ Display
• Remote Control (Air-Mouse capable)
• External Wi-Fi/Bluetooth Antennas
• 6′ USB-C Cable
• Power Cable
• Documentation
