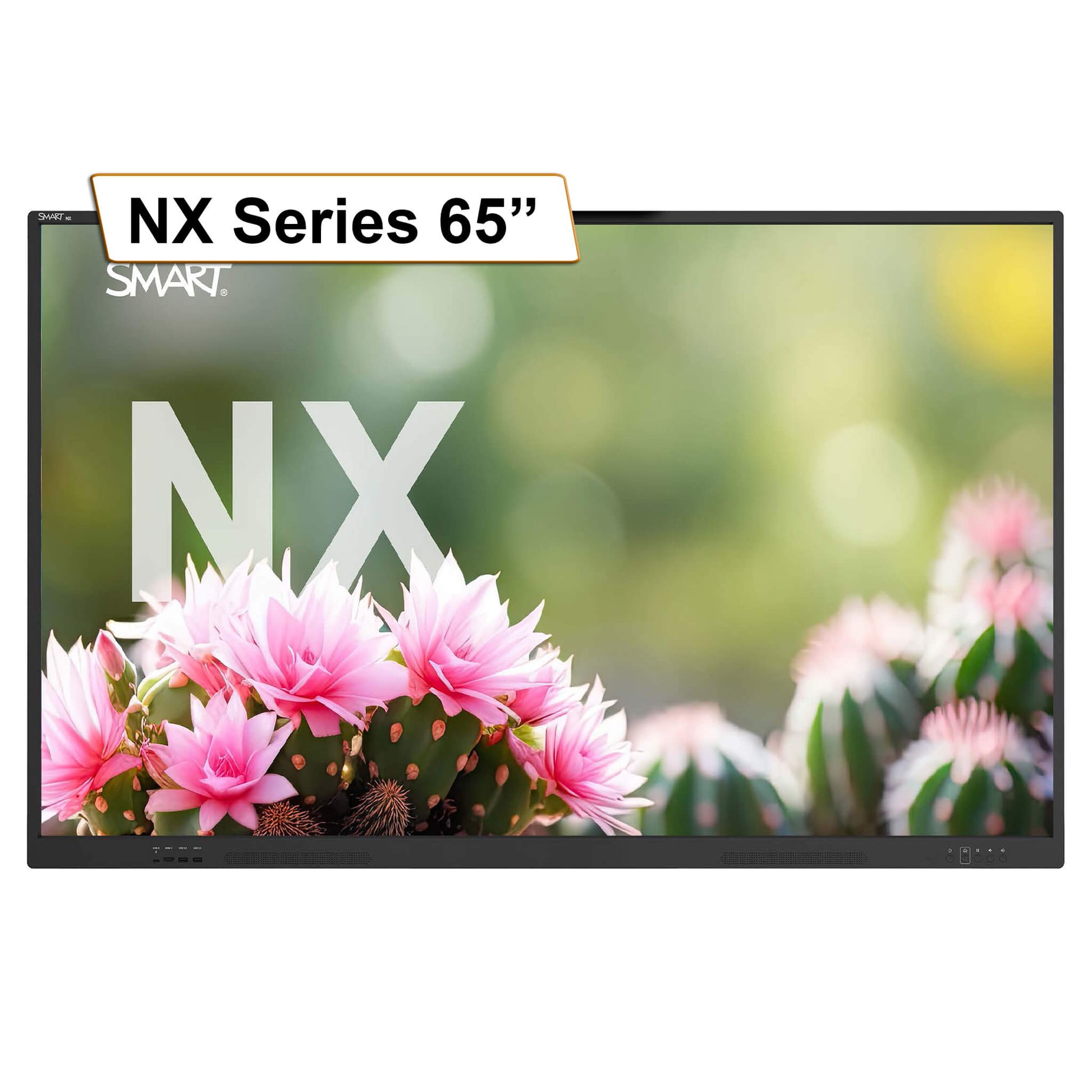

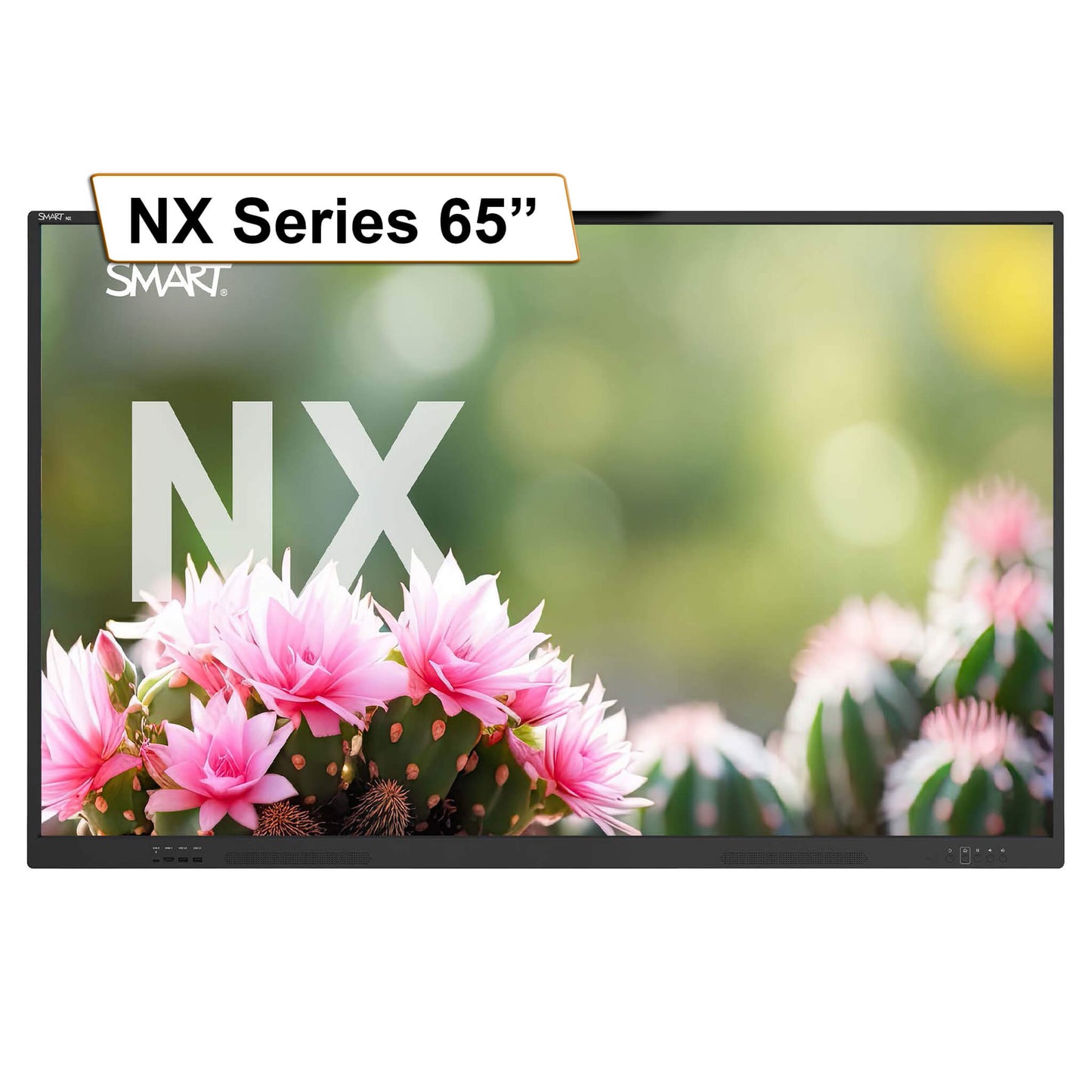

65" SMART Board NX Series Display with Screen Sharing - NX165

• Non-interactive 65″ 4K UHD classroom display—purpose-built for companion use with SMART interactive boards and for cost-effective school signage and presentation spaces.

• 4K (3840×2160) LED panel rated for 50,000 hours with bonded, heat-tempered anti-glare glass, 178° viewing, ≤8 ms response, and 2×20 W speakers for clear whole-room audio.

• Android 13 built in (with web browser, input select, OTA updates) plus 8 GB RAM / 64 GB storage—run signage playlists and screen sharing without a PC.

• Any-device screen sharing: SMART Mirror app, AirPlay, Miracast, Google Cast, and browser-based casting for quick walk-up presentations.

• Enterprise I/O for school AV: 3× HDMI 2.0 (1 front / 2 rear), DisplayPort 1.2, VGA, HDMI out, 3.5 mm in/out, S/PDIF, and RS-232 control.

• Modern USB: Dual USB-C (4K60) with front 15 W power delivery for one-cable laptop hookup, plus 4× USB-A 3.2 Gen 1 and 1× USB-A 2.0 for peripherals.

• Network-ready: RJ45 LAN in/out, Wi-Fi 6, Bluetooth 5.0; box includes external Wi-Fi/BT antennas, remote (Air-Mouse mode), and a 6′ USB-C cable.

• ENERGY STAR® / Ecodesign compliant; just 79 W typical (65″) and <0.5 W standby to lower district-wide operating costs.

• Scalable with OPS slot (supports SMART PCM modules/AMG1) and optional SMART Remote Management for fleet oversight.

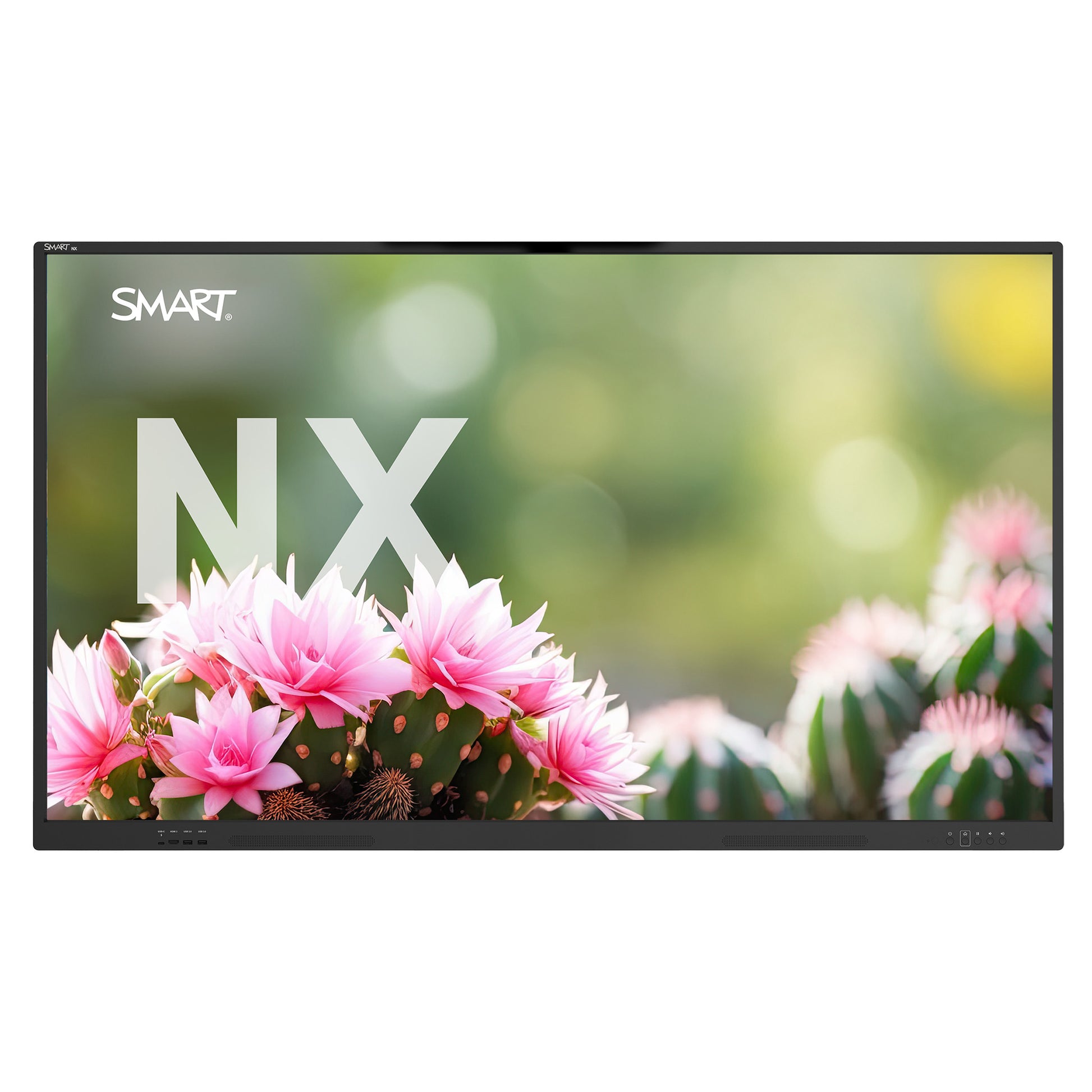

SMART Board NX Series – 65" Non-Interactive

The NX165 is SMART’s non-interactive 4K display made for schools that need reliable viewing, easy casting, and low total cost—without paying for touch. In classrooms, it’s the perfect companion screen beside a SMART interactive panel for overflow seating, small-group visibility, or dual-display lesson layouts. Around campus, it doubles as a digital signage workhorse for lobbies, cafeterias, libraries, and hallways.

Built for Teaching & Signage

Android 13 with 8 GB/64 GB runs your signage playlists and built-in tools (browser, input select, OTA updates). Teachers and students can cast from iOS, ChromeOS, Windows, or Android using SMART Mirror, AirPlay, Miracast, Google Cast, or even a browser—no extra boxes needed.

Classroom-Ready Audio/Video

A bonded, heat-tempered anti-glare front glass keeps content readable under bright lights, while the 2×20 W speakers project clearly for typical K-12 rooms and assembly spaces. Brightness, color, and 178° viewing angles keep the back row engaged.

AV/IT Friendly

With 3× HDMI 2.0 (one on the front for quick plug-ins), DP 1.2, VGA, HDMI out, RS-232, LAN in/out, and dual USB-C (front 15 W PD), the NX165 drops neatly into existing carts, switchers, and control systems. Add an OPS PC module when you want, or manage a fleet via SMART Remote Management (subscription).

Efficient & Reliable for District Rollouts

ENERGY STAR®/Ecodesign compliance and just 79 W typical (65″) help districts meet sustainability goals and trim utility budgets, while the 50,000-hour LED backlight supports long deployment cycles.
