Description
PRODUCT INFORMATION

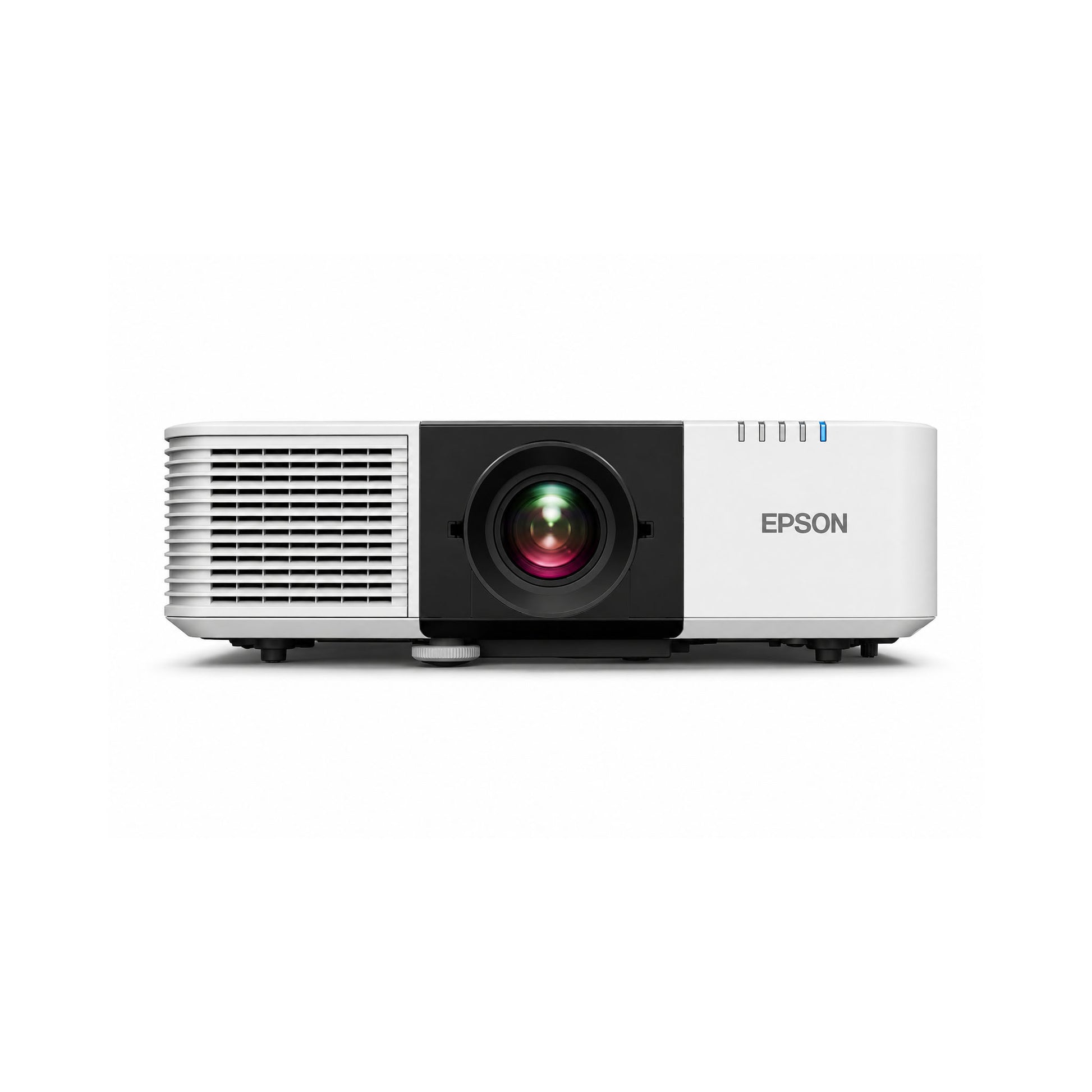

The Epson PowerLite L690U (V11HB29020) is a high-performance WUXGA 3LCD laser projector designed for large classrooms, lecture halls, conference rooms, houses of worship, museums, and digital signage applications. Delivering 6,500 lumens of both color and white brightness with native 1920 × 1200 (WUXGA) resolution, it produces exceptionally bright, detailed images up to 500 inches while supporting 4K input.
Equipped with a virtually maintenance-free laser light source, built-in wireless connectivity, Apple AirPlay® 2, Miracast®, and advanced installation tools including powered lens shift, 1.6x optical zoom, and geometric correction, the PowerLite L690U provides outstanding image quality and installation flexibility for professional AV environments.
KEY FEATURES
6,500 Lumens Brightness
Produces vibrant color and white brightness for large venues and brightly lit spaces.
Native WUXGA Resolution
1920 × 1200 resolution with support for 4K input delivers sharp text, graphics, and video.
Laser Light Source
Maintenance-free laser engine rated for up to 20,000 hours in Normal Mode and up to 30,000 hours in Extended Mode.
Built-In Wireless Connectivity
Features Wi-Fi 6/6E, Apple AirPlay® 2, Miracast®, and Epson iProjection™ for seamless wireless presentations.
Advanced Lens Shift
Powered vertical and horizontal lens shift simplifies installation without sacrificing image quality.
1.6x Optical Zoom
Provides flexible placement while maintaining full image resolution.
Professional Installation Features
Includes HDBaseT, edge blending, geometric correction, split screen, and 360° installation capability.
Large Image Projection
Projects bright, vivid images from 50" to 500".
PACKAGE INCLUDES
- Epson PowerLite L690U Laser Projector
- Remote Control
- Two (2) AA Batteries
- Power Cord
- Cable Cover
- Quick Start Guide
- Documentation
Specifications
| Product Attributes | |
| Brand | Epson |
| Condition | New |
| MPN | V11HB29020 |
| UPC / GTIN | 010343969759 |
| Warranty | 3-Year Limited Warranty |
| Dimensions & Weight | |
| Dimensions (W x H x D) | 17.3X5.4X13.4 |
| Length | 5.4 in |
| Width | 13.4 in |
| Height | 17.3 in |
| Weight | 18.1 lb |
| Shipping Weight | 18.1 lb |
| Product Information | |
| Battery size | AA |
| Battery type | Standalone (not-included) |
| Color | White |

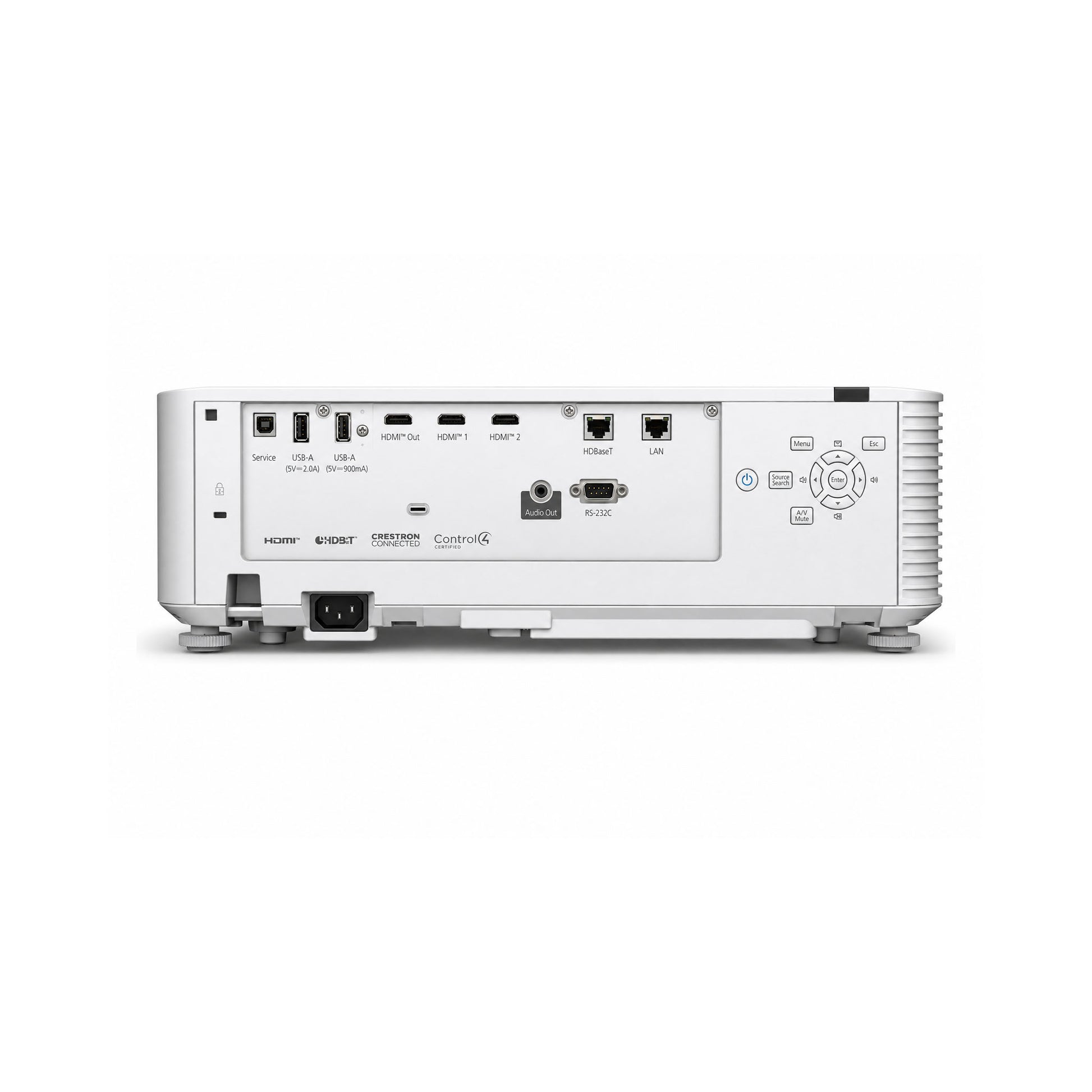

| Device interface | HDMI, HDBaseT, USB-A, USB-B, RJ-45 Ethernet, RS-232, Audio In/Out |
| Display resolution | 4K ultra HD |
| Display technology | LCD |
| Mounting type | Desktop, Ceiling Mount, Front Projection, Rear Projection, 360° Installation |
| Native aspect ratio | 16:10 |
| Additional Details | |
| Brightness | 6,500 Lumens |
| Built-in Speakers | Yes (10W Mono) |
| Certifications | ENERGY STAR, RoHS, FCC, UL, cUL |
| Contrast Ratio | 5,000,000:1 Dynamic |
| HDMI Inputs | 2 |
| Keystone Correction | ±30° Vertical, ±30° Horizontal |
| Lamp Life (Eco) | 30,000 Hours |
| Lamp Life (Normal) | 20,000 Hours |
| Lamp Part Number | Not Applicable (Laser Light Source) |
| Lamp Type | Laser Phosphor |
| Lens Shift | Yes (Powered Vertical ±50%, Horizontal ±20%) |
| Maximum Resolution | 3840 × 2160 (4K Input Supported) |
| Native Resolution | 1920 × 1200 (WUXGA) |
| Noise Level | 26 dB (Eco), 36 dB (Normal) |
| Projection Type | Standard Throw Laser Projector |
| Screen Size Range | 50"–500" |
| Throw Distance | Approx. 4.8 ft–48.3 ft (varies by screen size) |
| Throw Ratio | 1.35–2.20:1 |
| USB | 1 × USB-A, 1 × USB-B |
| VGA Input | No |
| Wireless | Yes (Built-in Wi-Fi 6/6E, Apple AirPlay 2, Miracast, Epson iProjection™) |
| Zoom | 1.6x Optical |
