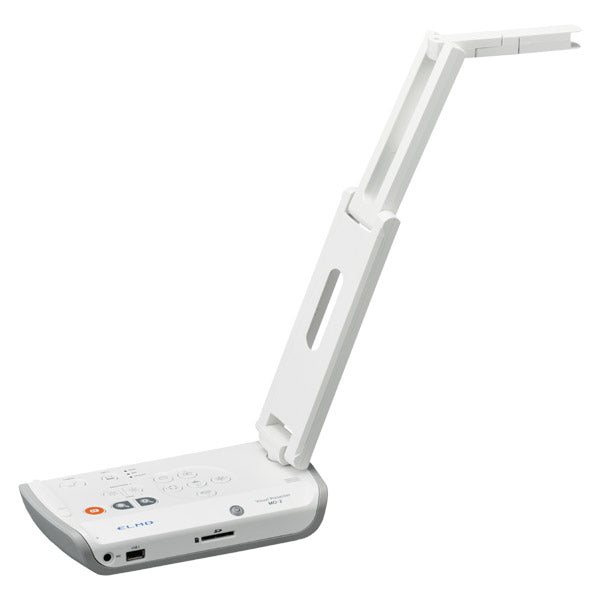

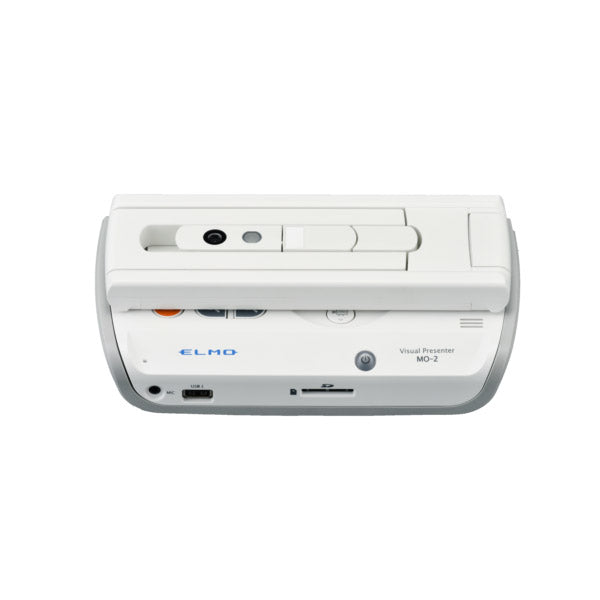

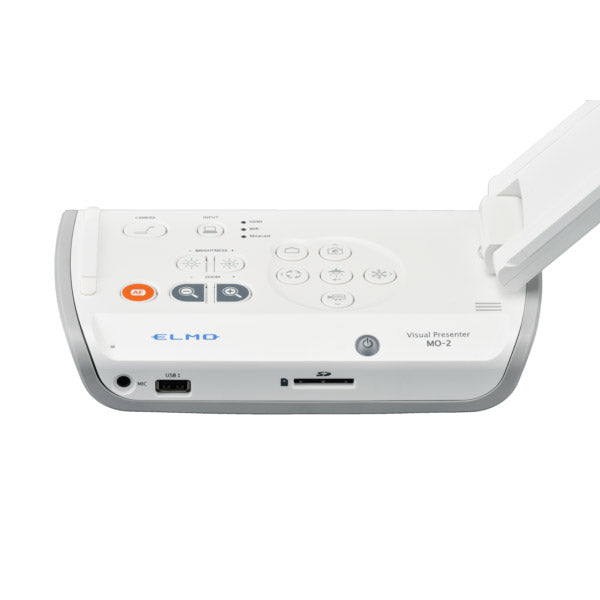

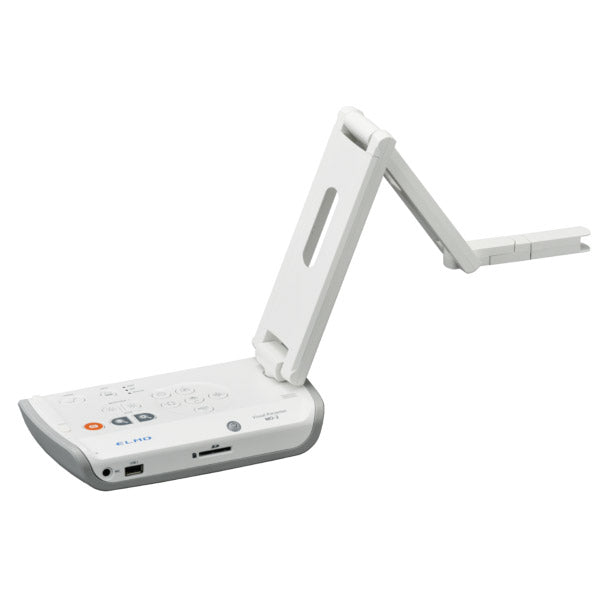

Elmo MO-2 STEM CAM Document Camera

• 8 Megapixel Camera
• 16x Digital Zoom
• Powered by Android
• 1080p Full HD Resolution
• Built-in Battery (Up to 2h50m)
• Miracast Wireless Technology
• 5-years Warranty

ELMO MO-2 Document Camera

OVERVIEW

The ELMO MO-2 is a state-of-the-art document camera designed to provide high-quality image capture and presentation capabilities. Ideal for classrooms, lecture halls, and professional presentations, the MO-2 features a sleek, portable design with advanced imaging technology. It supports a variety of input and output options, making it a versatile tool for educators, presenters, and professionals who need to display documents, objects, or live demonstrations in real time. The MO-2's intuitive operation and high-resolution imaging ensure that every detail is captured and displayed with clarity.

APPLICATIONS

The ELMO MO-2 Document Camera is ideal for:

• Education: Enhancing classroom instruction with real-time display of documents, books, and 3D objects.
• Business: Professional presentations, product demonstrations, and remote meetings.
• Legal: Displaying and sharing documents in legal proceedings or consultations.
• Medical: Telemedicine, training, and documentation of procedures.

KEY FEATURES

1. Ultra-High-Definition Imaging: The MO-2 features a powerful 13-megapixel camera capable of capturing images at up to 4K resolution, ensuring crystal-clear detail and vibrant color reproduction.
2. Optical Zoom: Equipped with 8x digital zoom, the camera allows users to focus on specific details without sacrificing image quality, making it perfect for highlighting small text or intricate details.
3. Flexible Arm: The MO-2's flexible arm and adjustable camera head provide versatile positioning options, allowing users to easily capture images from any angle.
4. HDMI and USB Connectivity: The MO-2 offers HDMI output for direct connection to displays or projectors and USB connectivity for integration with computers, making it easy to record and share presentations.
5. Built-In Microphone: A built-in microphone allows for audio capture, enhancing video recordings and live presentations.
6. Annotate and Record: Users can annotate over live images and record presentations directly onto a connected computer, offering powerful tools for education and training.
7. Compact and Portable: Weighing only 2.2 lbs (1 kg), the MO-2 is highly portable, making it easy to transport between classrooms or locations.
8. SD Card Slot: The integrated SD card slot allows for direct saving of captured images and videos, offering convenient storage and transfer options.
9. Advanced Image Features: The MO-2 includes features such as autofocus, auto white balance, and image rotation, ensuring optimal image quality in various lighting conditions and orientations.
10. Versatile Compatibility: Compatible with Windows and macOS, the MO-2 integrates seamlessly with various software platforms for easy control and operation.

CONCLUSION

The ELMO MO-2 Document Camera offers a powerful and versatile solution for capturing and presenting high-quality images and video. With its advanced imaging technology, flexible connectivity options, and compact design, the MO-2 is an essential tool for educators, professionals, and anyone needing to share detailed visual information. Its easy-to-use features and portability make it a valuable addition to any presentation toolkit.

Camera and Imaging

• Sensor: 1/3.2" CMOS Sensor
• Resolution: 13 megapixels
• Output Resolution:
  • 4K (3840 x 2160) @ 30 fps
  • Full HD (1920 x 1080) @ 30 fps
  • HD (1280 x 720) @ 30 fps
• Optical Zoom: 8x digital zoom
• Focus: Auto/Manual focus
• Frame Rate: Up to 30 frames per second
• Field of View: 20.4° x 12.3° (telephoto) to 59.5° x 37.2° (wide)
• Image Capture Area: Up to A3 size (11.8" x 16.5" or 297 mm x 420 mm)
• Lighting: Integrated LED light with brightness adjustment
• Image Rotation: 0°, 90°, 180°, 270°
• White Balance: Auto/Manual
• Exposure: Auto/Manual
• Image Features: Freeze frame, split screen, picture-in-picture

Connectivity

• HDMI Output: 1 x HDMI (Type A) for connection to displays and projectors
• USB Output: 1 x USB 2.0 (Type B) for connection to computers
• SD Card Slot: 1 x SD/SDHC card slot (supports up to 32GB)
• Microphone: Built-in mono microphone

Power and Dimensions

• Power Supply: USB-powered (5V/0.5A via USB port)
• Power Consumption: Approximately 2.5W
• Dimensions (Unfolded): 12.6" x 8.6" x 16.5" (320 mm x 220 mm x 420 mm)
• Dimensions (Folded): 12.6" x 3.9" x 1.4" (320 mm x 100 mm x 35 mm)
• Weight: 2.2 lbs (1 kg)

Software and Compatibility

• Supported Operating Systems: Windows 7/8/10, macOS X 10.9 or later
• Included Software: Image Mate + C software for image capture and video recording
• Compatibility: Works with various video conferencing and streaming platforms, including Zoom, Microsoft Teams, Google Meet, and more

Additional Features

• Annotation: Support for on-screen annotation (via software)
• Recording: Direct recording to USB-connected computer or SD card
• Audio Capture: Through built-in microphone
• Control Features: On-device buttons for zoom, focus, freeze, and other functions

Environmental and Safety

• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Certifications: CE, FCC, RoHS compliant

Warranty

• Warranty: Standard manufacturer warranty (typically 2 years, varies by region)
