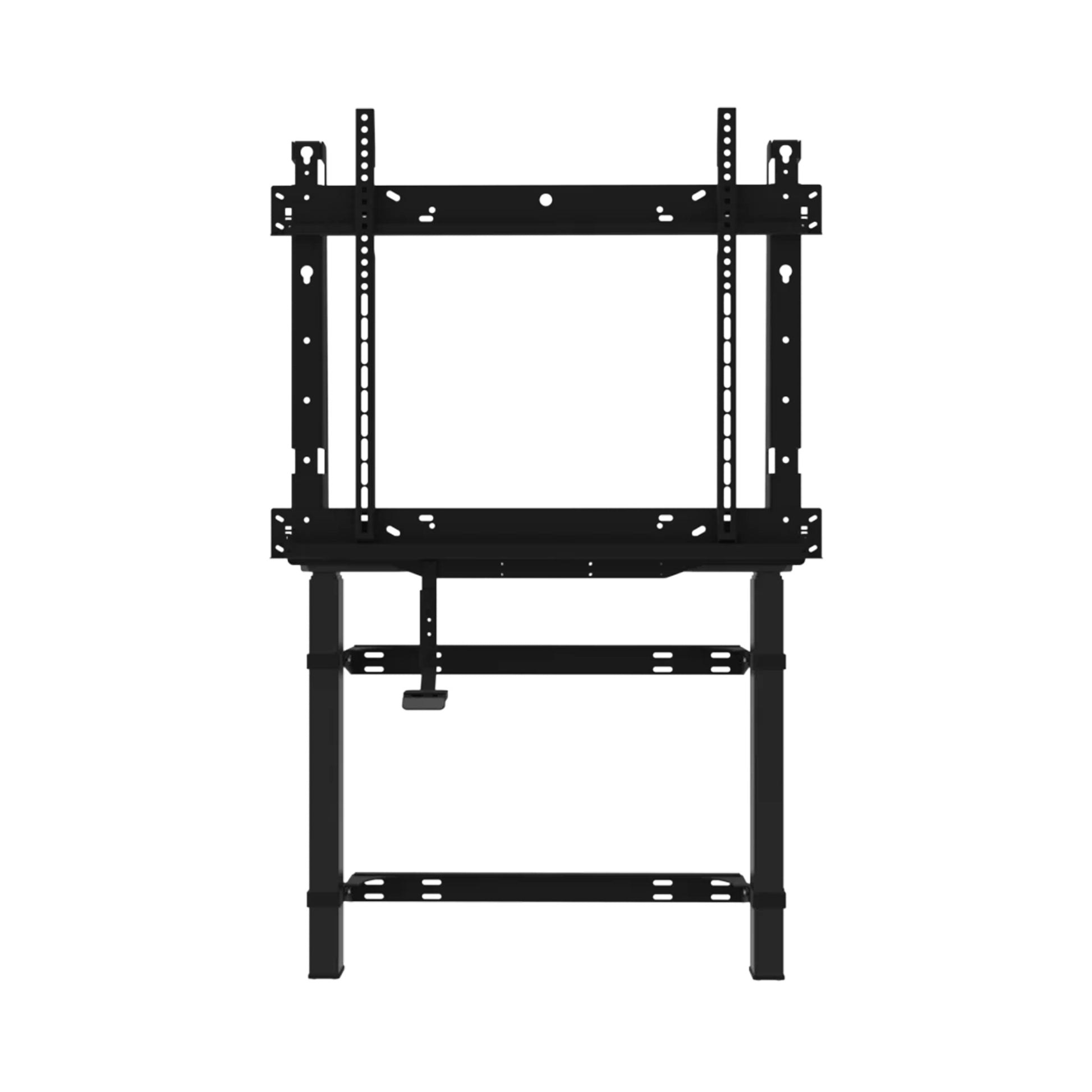

BalanceBox e·Box IV Motorized Height-Adjustable Wall Mount – 487A23001

The e·Box® IV Motorized Height-Adjustable Wall Mount – 487A23001 is a heavy-duty motorized wall mounting system for interactive flat panels and professional large-format displays. The U.S. 487A23001 model provides 38.6" (980 mm) of vertical travel at approximately 1.97"/sec (50 mm/sec) and supports display configurations weighing up to 308.6 lb (140 kg).

The e·Box IV uses a stable dual-column lifting system with dual anti-collision protection. It supports standard 16:9 displays up to 98", while BalanceBox also specifies support for 21:9 displays up to 105".

Key Features

• Motorized height-adjustable wall mount
• 38.6" (980 mm) vertical travel
• Fast 1.97"/sec (50 mm/sec) adjustment speed
• Supports up to 308.6 lb (140 kg)
• Supports standard 16:9 displays up to 98"
• Supports ultra-wide 21:9 displays up to 105"
• Stable dual-column lifting design
• Dual anti-collision safety system
• Heavy-duty steel construction
• Black RAL9005 textured powder-coated finish
• Maximum power consumption of 400W
• Standby consumption of only 0.1W
• CE and UL certified
• Designed for interactive displays and professional AV installations

Package Includes

• e·Box® IV Wall Mount – 487A23001 (USA)
• Dual-Column Motorized Lift Assembly
• Wall Mounting Assembly
• Control System
• Mounting Hardware for Assembly
• Installation Documentation

Important: Accessories such as the Wide VESA Bracket, Camera & Soundbar Bracket, Front Laptop Tray, Front Keyboard Shelf, and Floorplate are separate accessories.
