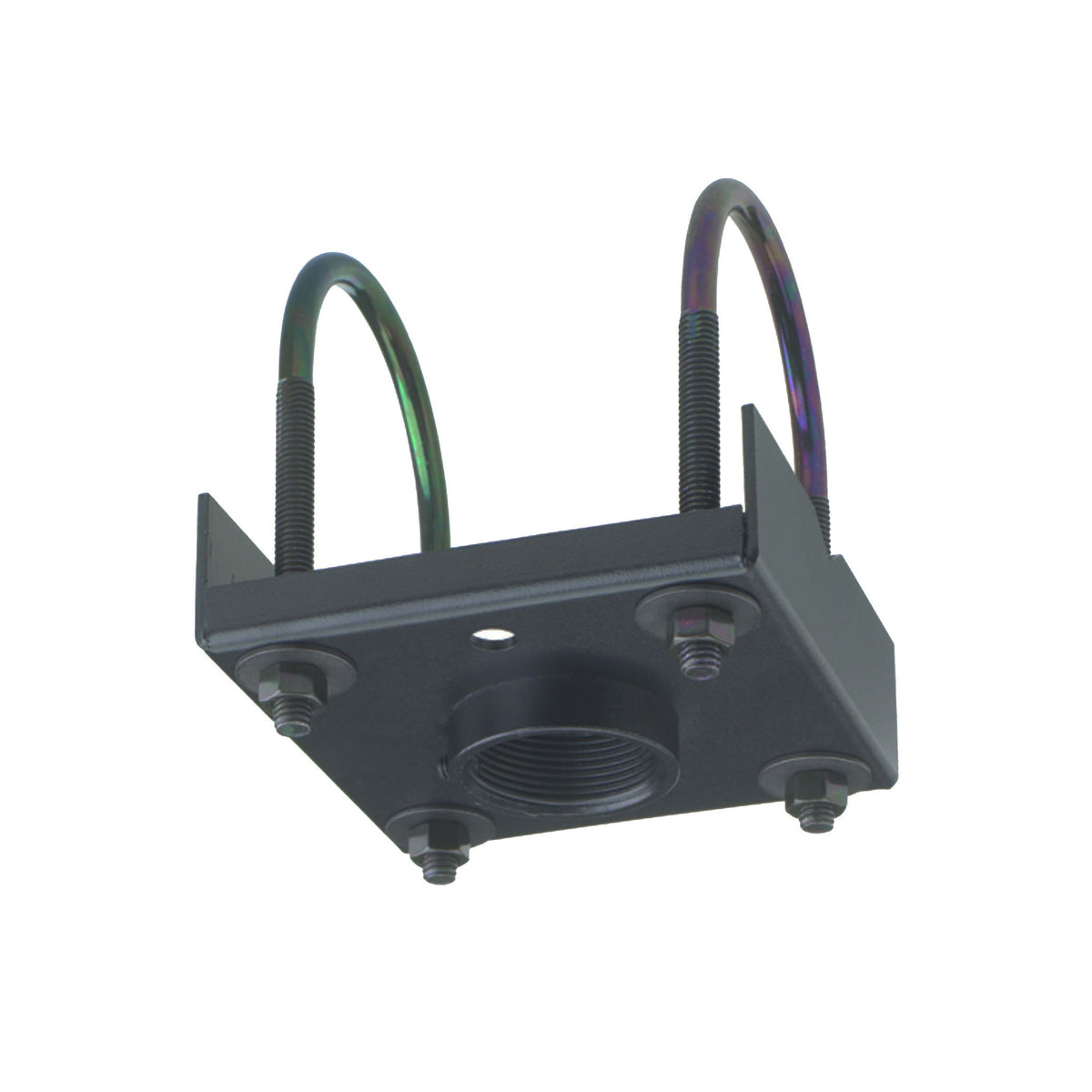

Chief Truss Ceiling Adapter - CMA365

The Chief Truss Ceiling Adapter – CMA365 is a structural mounting adapter designed to connect a 1.5" threaded extension column to square, round, rectangular, or I-beam truss structures. It supports truss or pipe sizes from 0.75" to 3" (19–76 mm) outside diameter and has a maximum load capacity of 250 lb (113.4 kg).

The CMA365 is constructed from steel with a black finish and is intended for professional ceiling-mounted projector and AV installations. Chief lists it as part of its CMA Series structural mounting accessories.

Key Features

• Truss ceiling adapter for professional AV installations
• Connects to 1.5" threaded extension columns
• Compatible with square, round, rectangular, and I-beam truss
• 0.75"–3" (19–76 mm) clamp range
• Supports up to 250 lb (113.4 kg)
• Heavy-duty steel construction
• Black finish
• Compatible with Chief CMS 1.5" threaded column systems
• UL Listed
• TÜV approved
• Installation hardware included

Package Includes

• 1 × CMA365 Structural Truss Ceiling Adapter
• 2 × 3/8"-16 U-bolts
• 4 × Flat washers
• 4 × 3/8"-16 serrated flange hex nuts
• 1 × 5/16"-18 set screw
• 1 × 5/32" hex key
