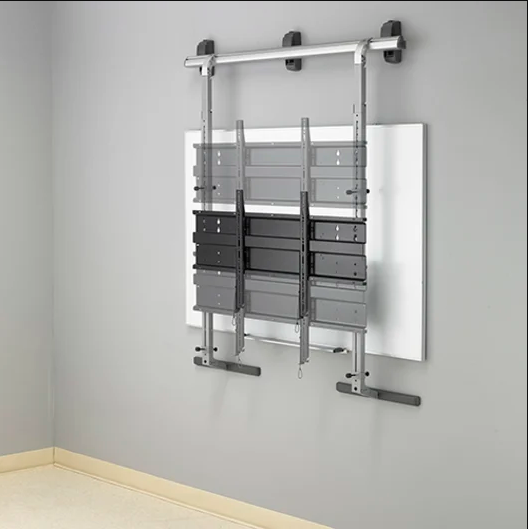

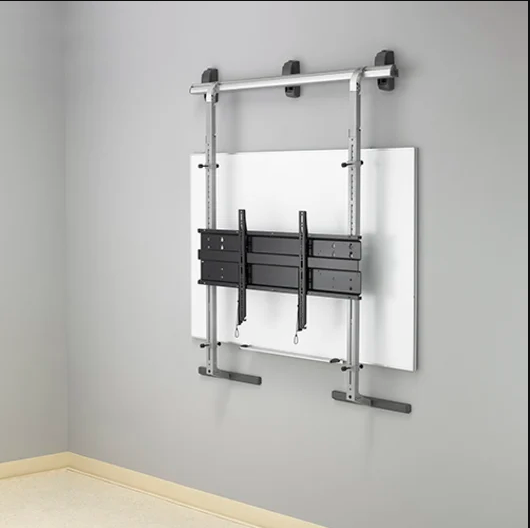

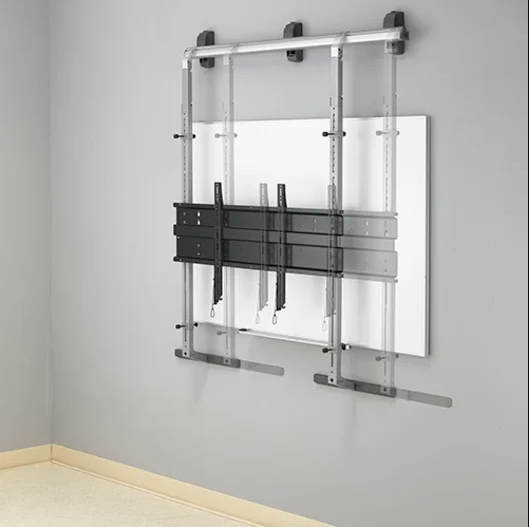

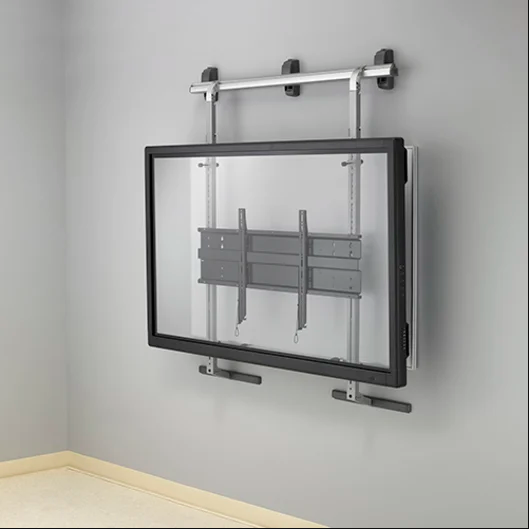

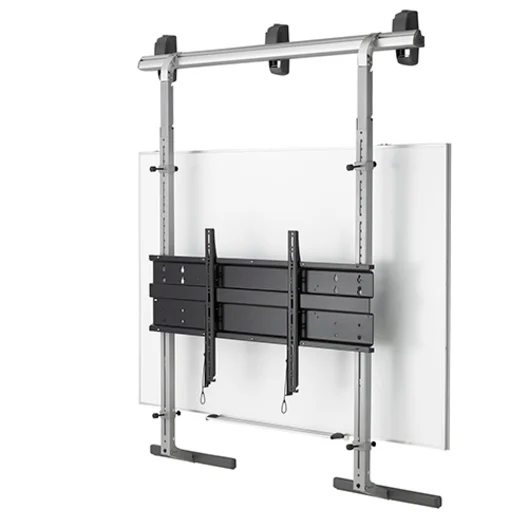

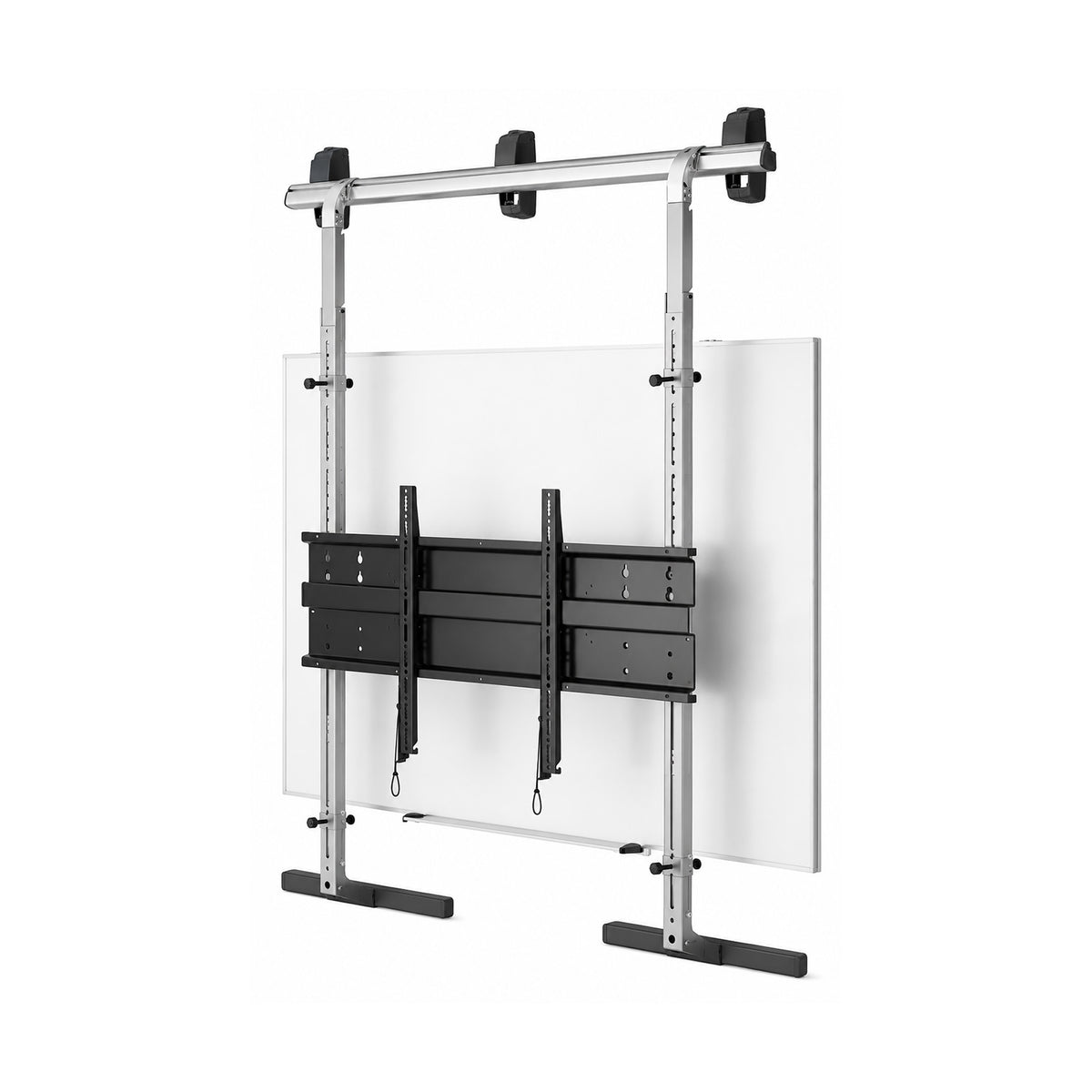

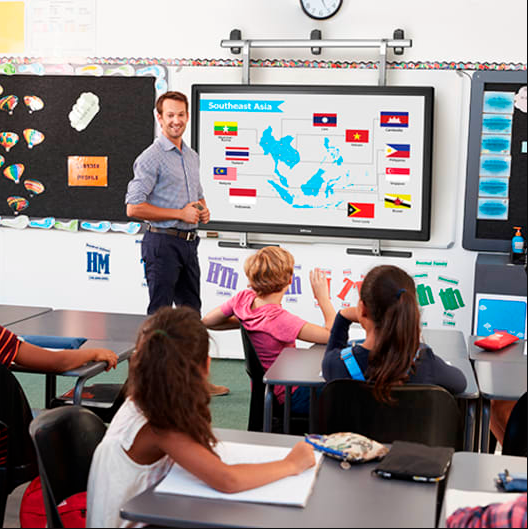

Chief OB1U Over the Board Interactive Display Mount

No Damage to Existing Whiteboards

• Adjustable to Any VESA Pattern
• Height Adjustable to Fit Different Setups
• Quick Connect to Easily Attach to Display
• Cable Management Channels

Chief OB1U Over the Board Interactive Display Mount

The Chief OB1U is a versatile over-the-whiteboard mount designed to provide optimal positioning and stability for interactive displays and projectors in educational and business settings. This mount offers a flexible installation solution, allowing for easy adjustments and alignment, ensuring that interactive content is presented accurately and engagingly.

Product Description:

The Chief OB1U over-the-whiteboard mount is engineered to support various interactive displays and projectors, making it ideal for classrooms, boardrooms, and other collaborative environments. Its robust construction ensures durability and reliability, while the adjustable design provides the flexibility to fit different whiteboard and display sizes. The OB1U is compatible with a wide range of display brands and models, offering a universal solution for modern educational and professional needs.

This mount is designed for easy installation and maintenance, featuring intuitive adjustments and quick-connect mechanisms. Its sleek and unobtrusive design integrates seamlessly into any room, minimizing visual clutter while providing a stable platform for interactive displays. The OB1U also supports cable management, ensuring a clean and organized setup.

• Accommodates typical large displays between 50-80” and VESA® up to 1020 - 500 mm, to extend to VESA® 1020 x 600 mm specify FHB5036 bracket for M6 screws, or specify FHB5037 bracket for M8 screws.
• Heavy-duty weight capacity of 310 lbs (140.6 kg)
• Display height adjustment range of 26” (660 mm)
• Interface brackets mount directly to display, then hang on single rail-style cross bracket, eliminating need to remove display from box prior to installation
• Installs into various wall types (wood, concrete, steel, cinder-block)
• Flexible wall assembly anchoring points ensure a minimum of two studs are used - three brackets for 16” on-center studs, or two brackets for 24” on-center studs are included
• Integrated lateral shift allows for easy adjustment left or right
• When installed, mount allows for a minimum of 4” (102mm) clearance from wall
• Plumb adjustment up to 1.5° to compensate for uneven walls
• Telescoping legs allow mount to be adjusted easily around classroom obstacles

CONCLUSION

The Chief OB1U is a reliable and versatile solution for mounting interactive displays and projectors over whiteboards, providing educators and professionals with a secure and adjustable platform to enhance presentations and interactive experiences.

Detailed Specifications for Chief OB1U

General Information:

• Product Type: Over-the-Whiteboard Mount
• Manufacturer: Chief Manufacturing
• Model: OB1U

Compatibility:

• Display Compatibility: Accommodates typical large displays between 50-80”
• VESA Compatibility:  VESA® up to 1020 - 500 mm, to extend to VESA® 1020 x 600 mm specify FHB5036 bracket for M6 screws, or specify FHB5037 bracket for M8 screws.
• Heavy-duty weight capacity: 310 lbs (140.6 kg)

Adjustability:

• Height Adjustment: Adjustable height range of 26” (660 mm)
• Width Adjustment: Adjustable width to ensure compatibility with different screen dimensions.
• Tilt Adjustment: Up to ±5 degrees for precise display alignment.
• Swivel Adjustment: Enables side-to-side adjustment for optimal viewing angles.

Construction and Materials:

• Material: High-grade steel construction for durability and strength.
• Finish: Powder-coated finish for a sleek appearance and added protection.

Weight Capacity:

• Maximum Load Capacity: Varies based on specific model and setup, generally supporting heavy interactive displays.

Installation:

• Installs into various wall types: (wood, concrete, steel, cinder-block
• Mounting Options: Designed for secure wall mounting, adaptable to various wall types.
• Hardware: Includes necessary mounting hardware and accessories for installation.
• Quick Connect Mechanisms: Allows for easy and secure attachment and detachment of the display.
• Fine-Tuning: Provides precise alignment adjustments post-installation.

Cable Management:

• Integrated Channels: Built-in channels for organizing and concealing cables, ensuring a clean installation.

Safety and Compliance:

• Safety Features: Secure locking mechanisms to prevent accidental dislodging.
• Compliance: Meets relevant safety and quality standards for mounting systems.

Physical Dimensions:

• Mounting Plate Dimensions: Accommodates various VESA mounting patterns (specific dimensions depend on the display).
• Weight: Varies based on configuration and components used.

Environmental Specifications:

• Operating Environment: Suitable for use in educational, corporate, and other professional settings.
