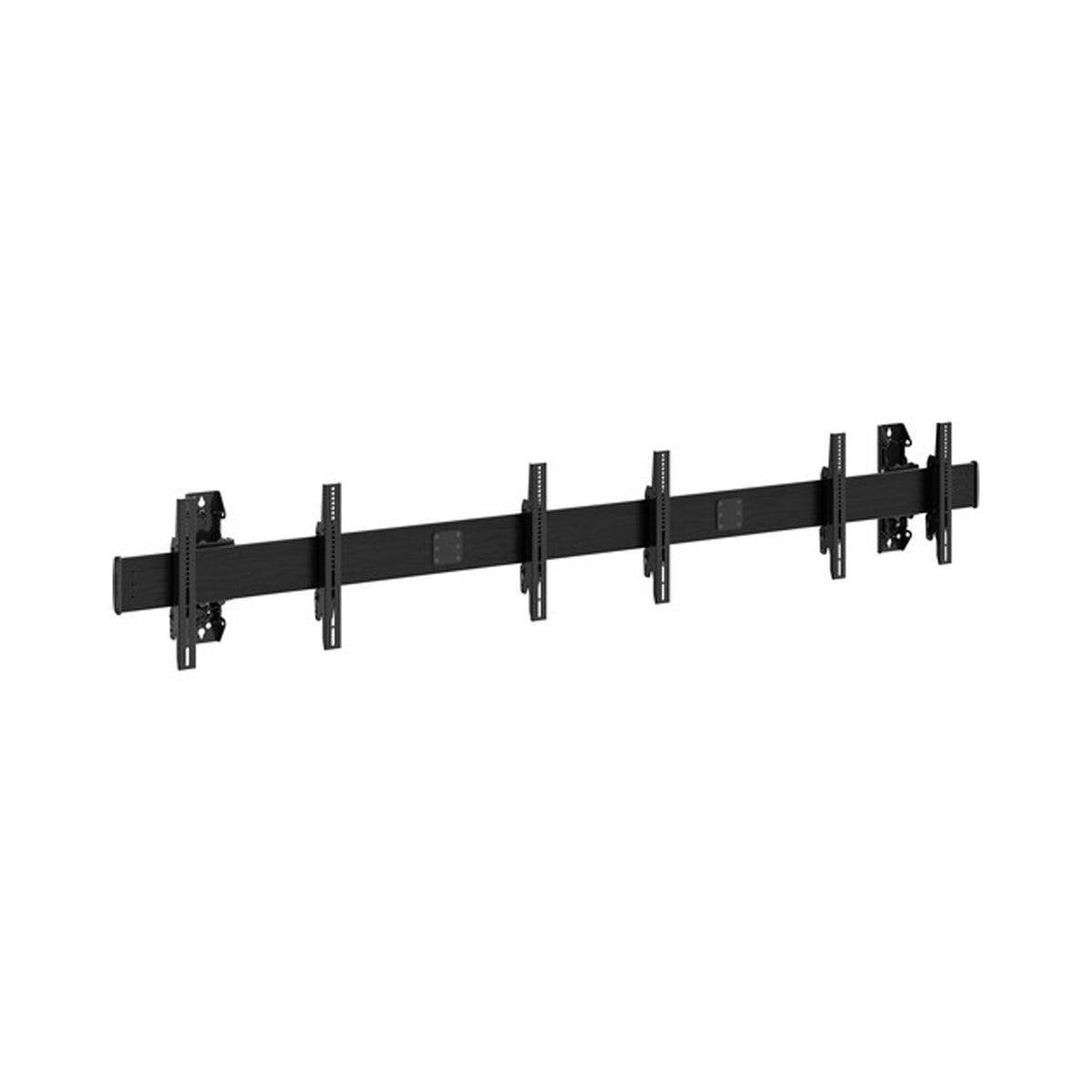

Chief MENU BOARD, 3 WIDE, 1 HIGH - LCM3X1U

The Chief FUSION Large Ceiling Mounted 3 × 1 Menu Board – LCM3X1U is a commercial multi-display ceiling mount designed to hold three flat-panel displays side-by-side in landscape orientation. It is intended for digital signage and menu-board installations where wall mounting is not practical.

The LCM3X1U supports 40"–55" displays, with support for displays up to 65" when optional FCAX extension brackets are used. Each display can weigh up to 125 lb (56.7 kg). Chief's FUSION design provides micro-height adjustment, lateral positioning and Centris tilt for aligning all three displays.

Key Features

• 3-wide × 1-high display configuration
• Holds 3 flat-panel displays
• Designed for ceiling-mounted digital signage and menu boards
• Supports 40"–55" displays
• Supports displays up to 65" with optional FCAX extension brackets
• 125 lb weight capacity per display
• 375 lb combined display capacity
• 2" micro-height adjustment
• Centris tilt adjustment
• +5° / -20° tilt range
• Lateral shift for display alignment and servicing
• Single horizontal extrusion keeps displays aligned
• Tool-free screen engagement
• Optional padlock security
• Compatible with 1.5" NPT and Chief CPA pinned ceiling systems
• UL Listed
• TAA Compliant

Package Includes

• Chief LCM3X1U 3 × 1 menu board mounting system
• Horizontal mounting rail/extrusion
• 3 display interface assemblies
• Mounting and installation hardware

Ceiling plate: Not included
Extension column: Not included
Displays: Not included

Chief specifically requires a compatible ceiling plate and extension column, which must be ordered separately.
