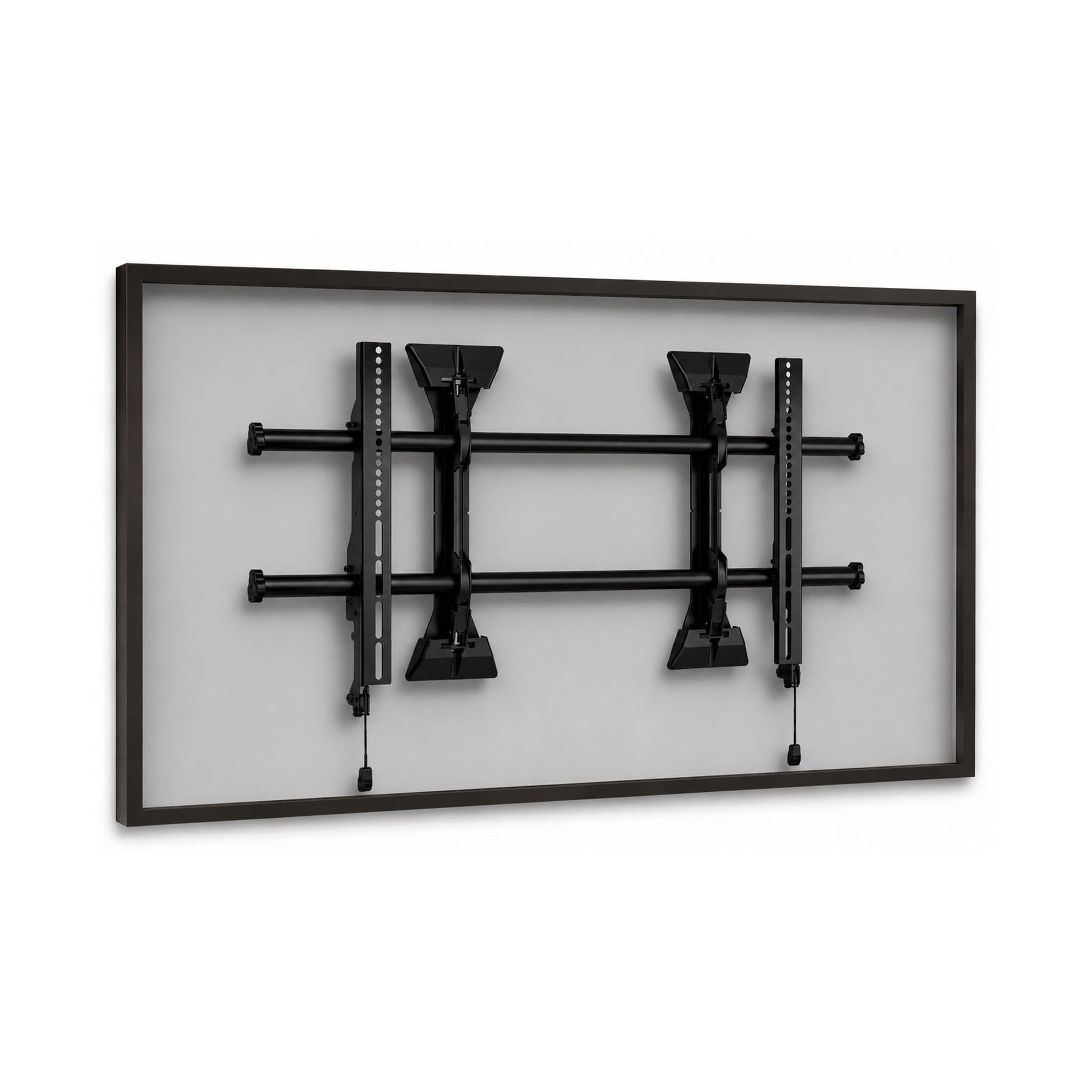

Chief LSM1U Fusion Series Fixed Wall Mount for 42 to 86" Displays

• For Displays from 42" to 86"
• Supports up to 200 lbs.
• Fits VESA Patterns 100 x 100 to 800 x 500 mm
• Lateral Shift Adjustments of up to 16"
• Tool-Free Micro Adjustments for Exact Leveling

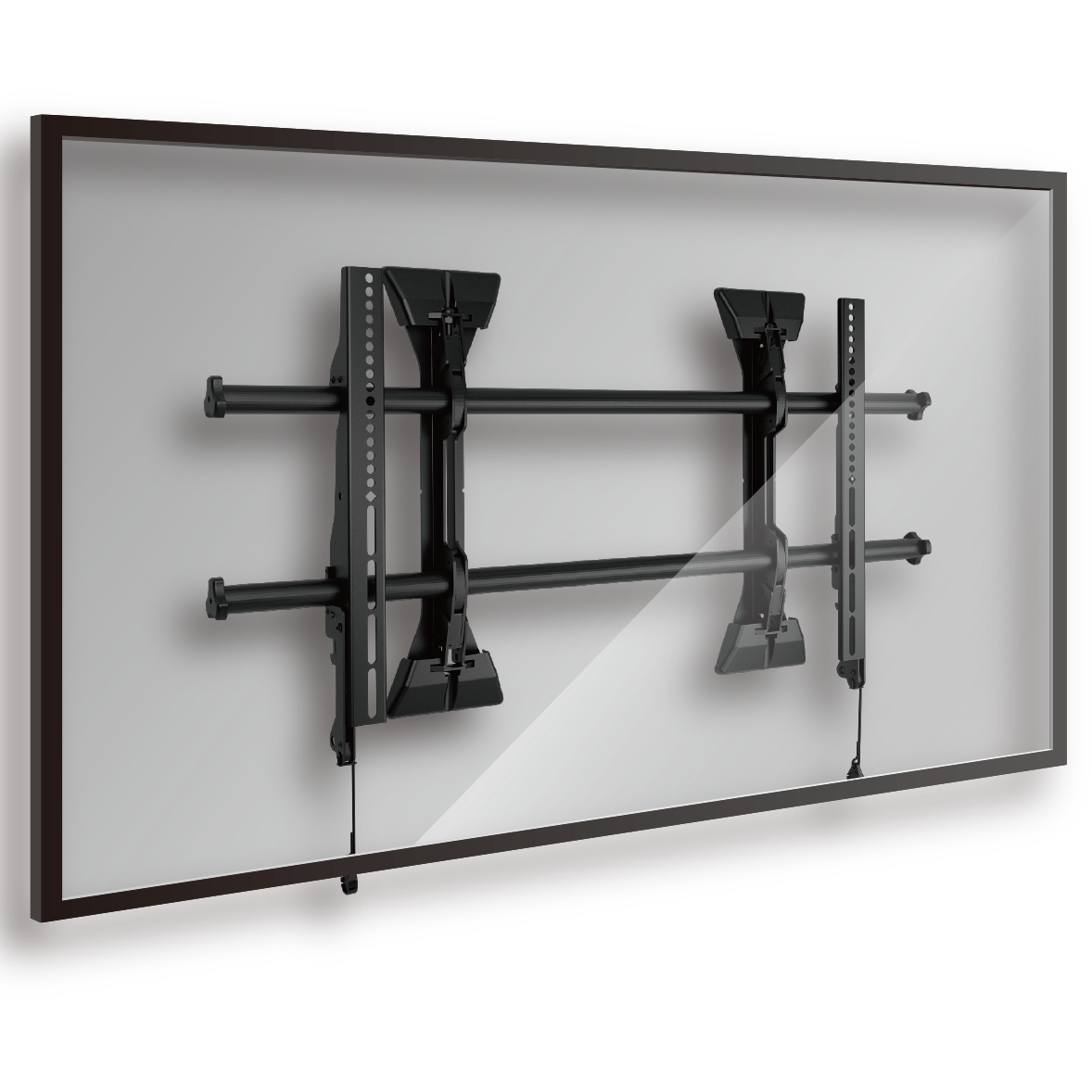

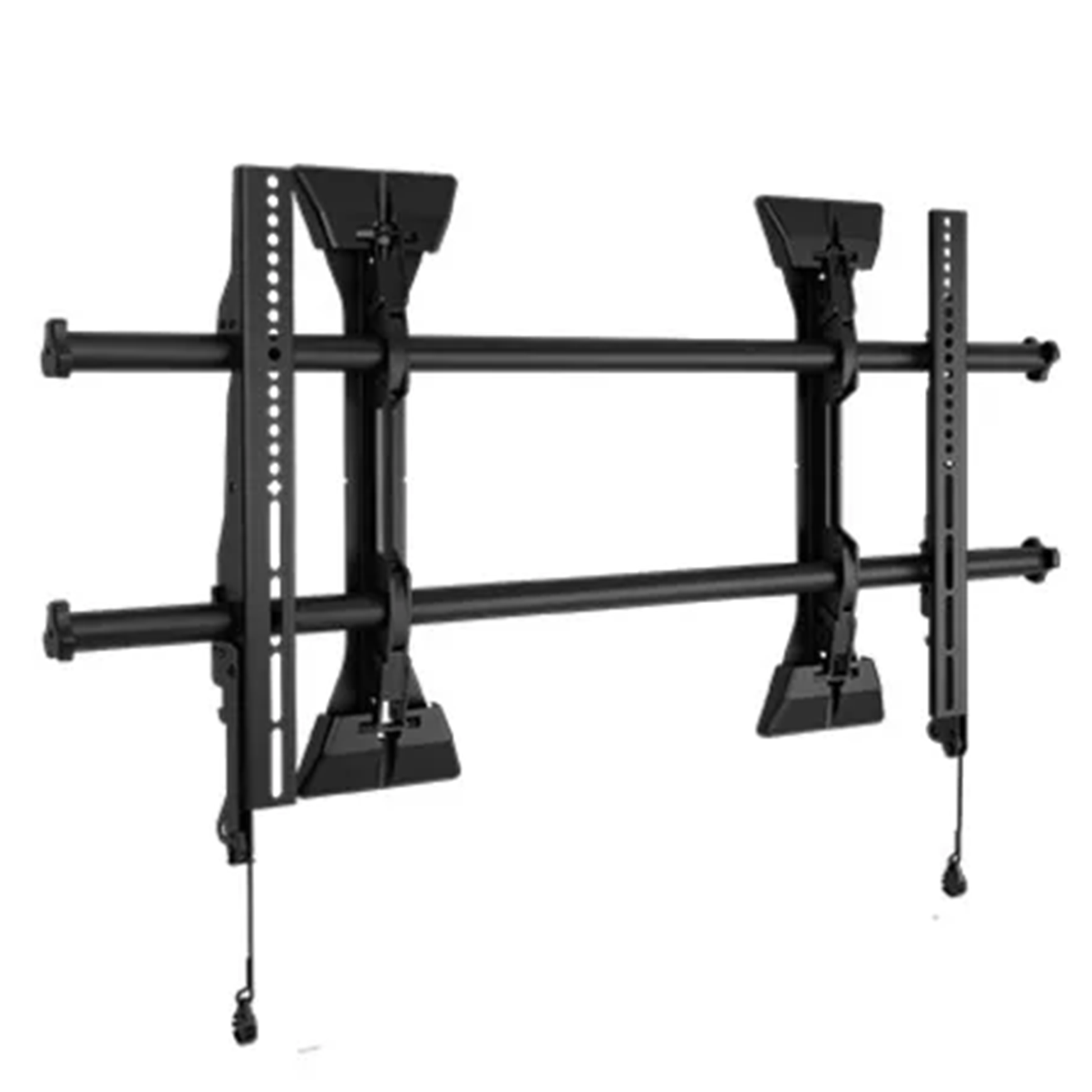

Chief LSM1U Fixed Wall Mount

OVERVIEW

The Chief LSM1U is a professional-grade fixed wall mount designed for large displays ranging from 37" to 63". It is part of Chief's large series of mounts, known for their robust construction, ease of installation, and versatile adjustment options. The LSM1U is ideal for commercial installations in conference rooms, digital signage, educational environments, and more. It provides a low-profile mounting solution that ensures displays are securely positioned close to the wall while allowing for easy setup and maintenance.

INSTALLATION AND COMPATIBILITY

The Chief LSM1U is designed for quick and easy installation. It is compatible with a wide range of flat-panel displays, including LED, LCD, and Plasma TVs. The mount's universal design and wide VESA compatibility make it suitable for most installations. The included installation hardware and clear instructions ensure a hassle-free setup process.

KEY FEATURES

1. Universal Compatibility: The LSM1U supports a wide range of display sizes, from 37" to 63", making it a versatile choice for various applications.
2. Low-Profile Design: With a minimal depth from the wall, the mount provides a sleek and unobtrusive appearance, perfect for areas where aesthetics are important.
3. Lateral Shift: The mount includes built-in lateral shift, allowing for easy centering of the display, even on off-center studs.
4. ClickConnect Technology: This feature provides an audible click to confirm that the display is securely attached, ensuring safety and ease of installation.
5. ControlZone Leveling: Fine-tune the leveling of the display after installation with ControlZone Leveling, ensuring a perfect fit.
6. Tool-Free Micro Adjustments: For precise alignment, the LSM1U allows for tool-free micro-adjustments, making it easy to achieve the perfect positioning.
7. Integrated Cable Management: The mount offers pathways for cable management, keeping the installation tidy and reducing the risk of cable damage.
8. Heavy-Duty Construction: Built with high-quality materials, the LSM1U is designed for durability and long-lasting use in demanding environments.
9. Security Features: The mount includes integrated security features, making it suitable for public or semi-public installations.

APPLICATIONS

The LSM1U is perfect for:

• Corporate boardrooms and meeting spaces
• Digital signage in public areas
• Educational institutions
• Retail environments
• Hospitality settings

Conclusion

The Chief LSM1U Fixed Wall Mount offers a secure, sleek, and versatile solution for mounting large displays. Its combination of easy installation features, robust construction, and elegant design makes it an excellent choice for various commercial and professional settings.

• Compatibility: VESA patterns 100 x 100 - 800 x 500 mm
• Weight Capacity: Up to 200 lbs (90.7 kg)
• Mounting Profile: Approximately 1.25" (32 mm) from the wall
• Adjustments:
  • Lateral Shift: Yes, up to 16" (8" left/right)
  • Micro Adjustments: Yes, tool-free
• Material: Steel construction with a durable powder coat finish
• Color: Black
• Dimensions:
  • Height: 18.88" (479 mm)
  • Width: 36.5" (927 mm)
  • Depth: 1.25" (32 mm)
• Product Weight: 19 lbs (8.6 kg)
• Security: Optional padlock for added security
• Warranty: Limited lifetime warranty
