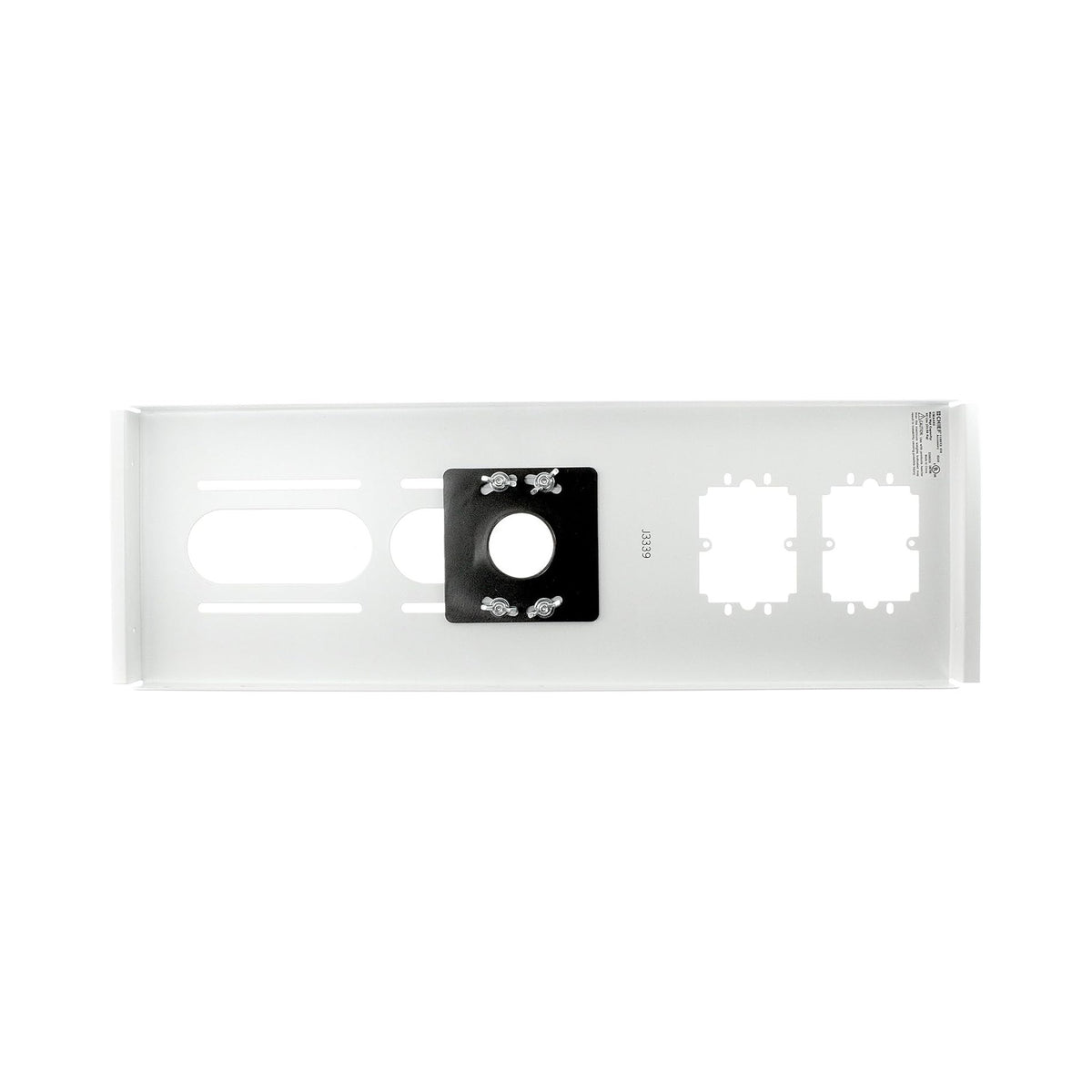

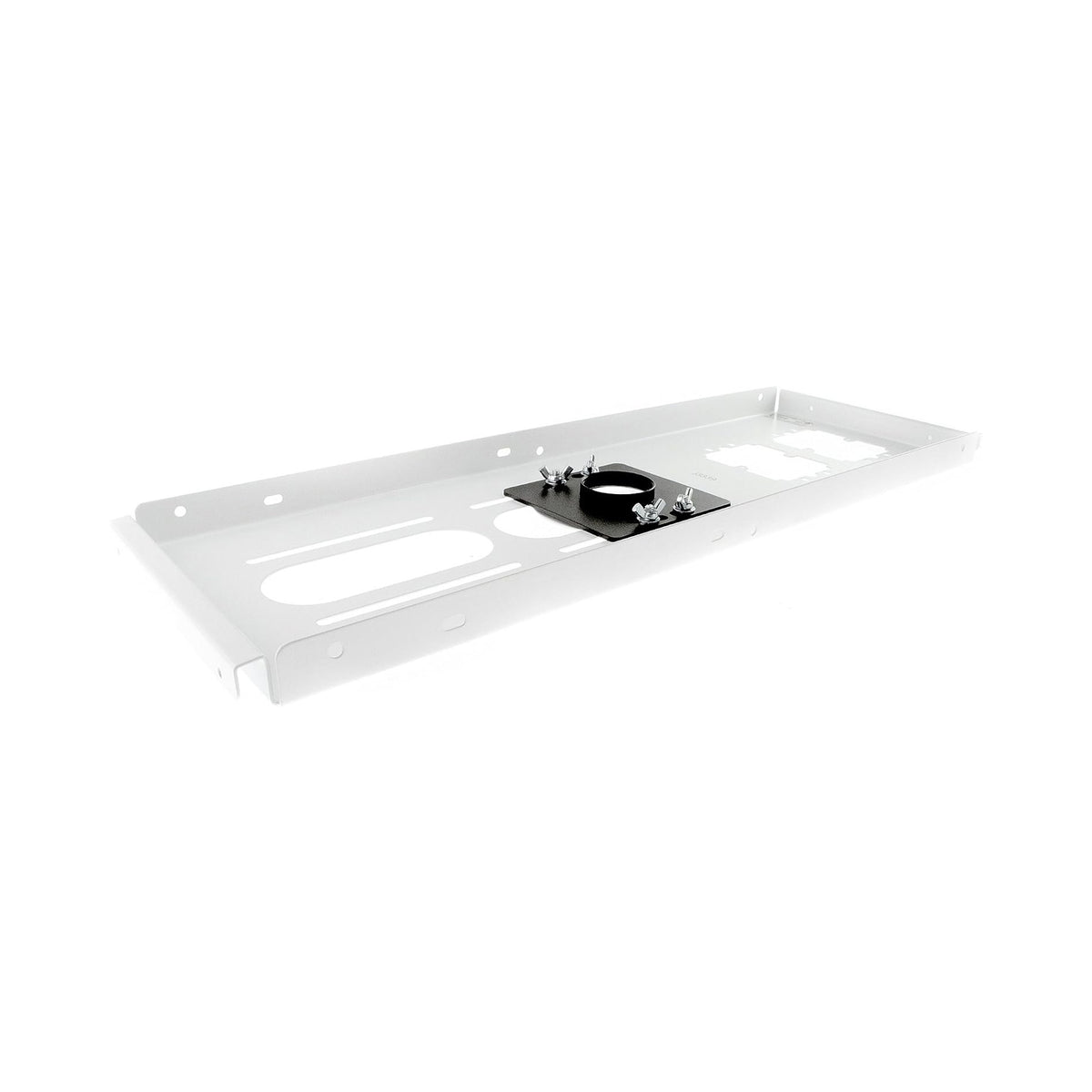

Chief 8 x 24" Ceiling Plate - CMA440

The Chief 8 × 24" Ceiling Plate – CMA440 is an above-tile suspended ceiling mounting kit designed for projector installations in suspended/drop ceilings. The reinforcing plate installs above the ceiling tile and clamps to the ceiling grid, providing a secure attachment point for Chief ceiling-mount components.

It supports equipment up to 50 lb (22.7 kg) and accepts 1.5" NPT or NPSM threaded extension columns. Chief also provides support wires and a safety cable so the plate can be secured to the true structural ceiling above the suspended grid.

Key Features

• 8" × 24" above-tile suspended ceiling plate
• Designed for projector mounting applications
• Supports up to 50 lb (22.7 kg)
• Installs above suspended ceiling tile
• Easy clamping to ceiling tracks
• Compatible with 1.5" NPT or NPSM extension columns
• Includes 10 ft safety cable
• Includes 20 ft strand/support wire
• Includes four turnbuckles
• Two electrical outlet knockouts
• Includes wood eye bolts and concrete anchors
• UL Listed
• White finish
• Minimal assembly required

Package Includes

• 1 × CMA440 Ceiling Plate
• 10 ft safety cable
• 20 ft strand wire
• 4 × turnbuckles
• Wood eye bolts
• Concrete anchors
• Chrome finishing ring
• Mounting hardware
