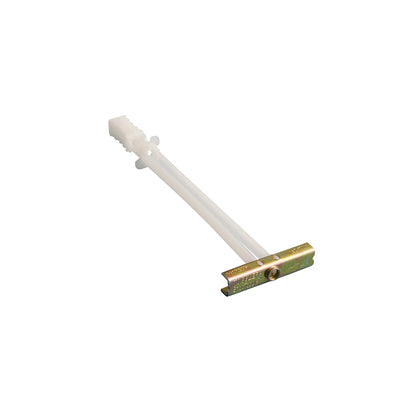

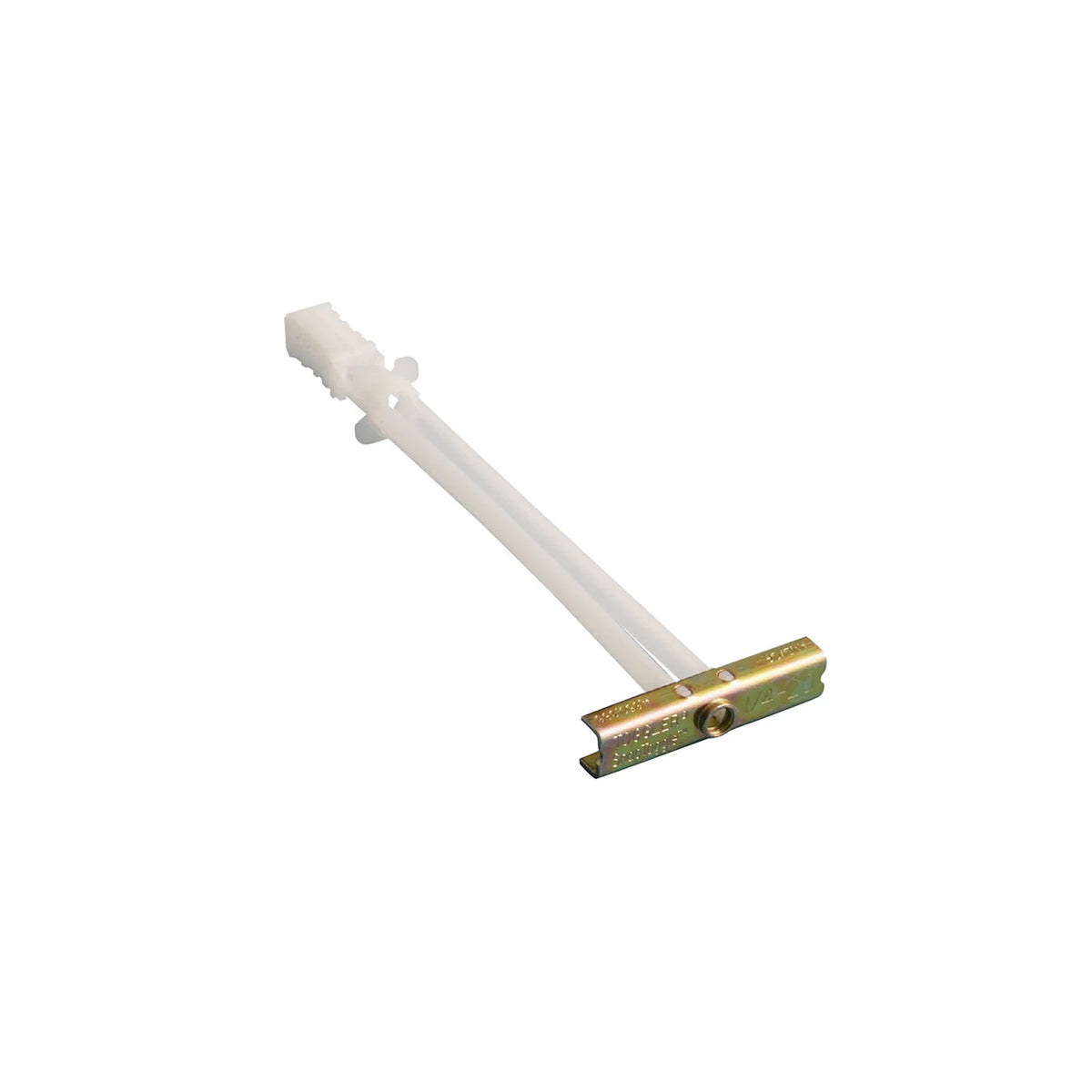

Chief 1/4-20 GRADE 5 TOGGLER KIT - FCAT1

The Chief FCAT1 1/4-20 Grade 5 Toggler Kit is a mounting hardware kit designed to allow compatible Chief mounts to be installed to metal studs. It is compatible with Chief Fusion wall mounts and uses Grade 5 hardware for secure mounting. Chief specifies that the drywall must be at least 0.5" (13 mm) thick.

The kit is intended for installations using 2" × 4", 25-gauge minimum steel studs. The supported display weight depends on the Chief mount being installed rather than the FCAT1 kit having its own universal load rating.

Key Features

• 1/4"-20 Grade 5 mounting hardware
• Designed for mounting to metal studs
• Compatible with Chief Fusion wall mounts
• Supports installation of large flat-panel display mounts
• For 2" × 4", 25-gauge minimum steel studs
• Requires drywall at least 0.5" (13 mm) thick
• Maximum drywall thickness: 5/8" (16 mm)
• Weight capacity depends on the mount being installed
• Four-anchor kit

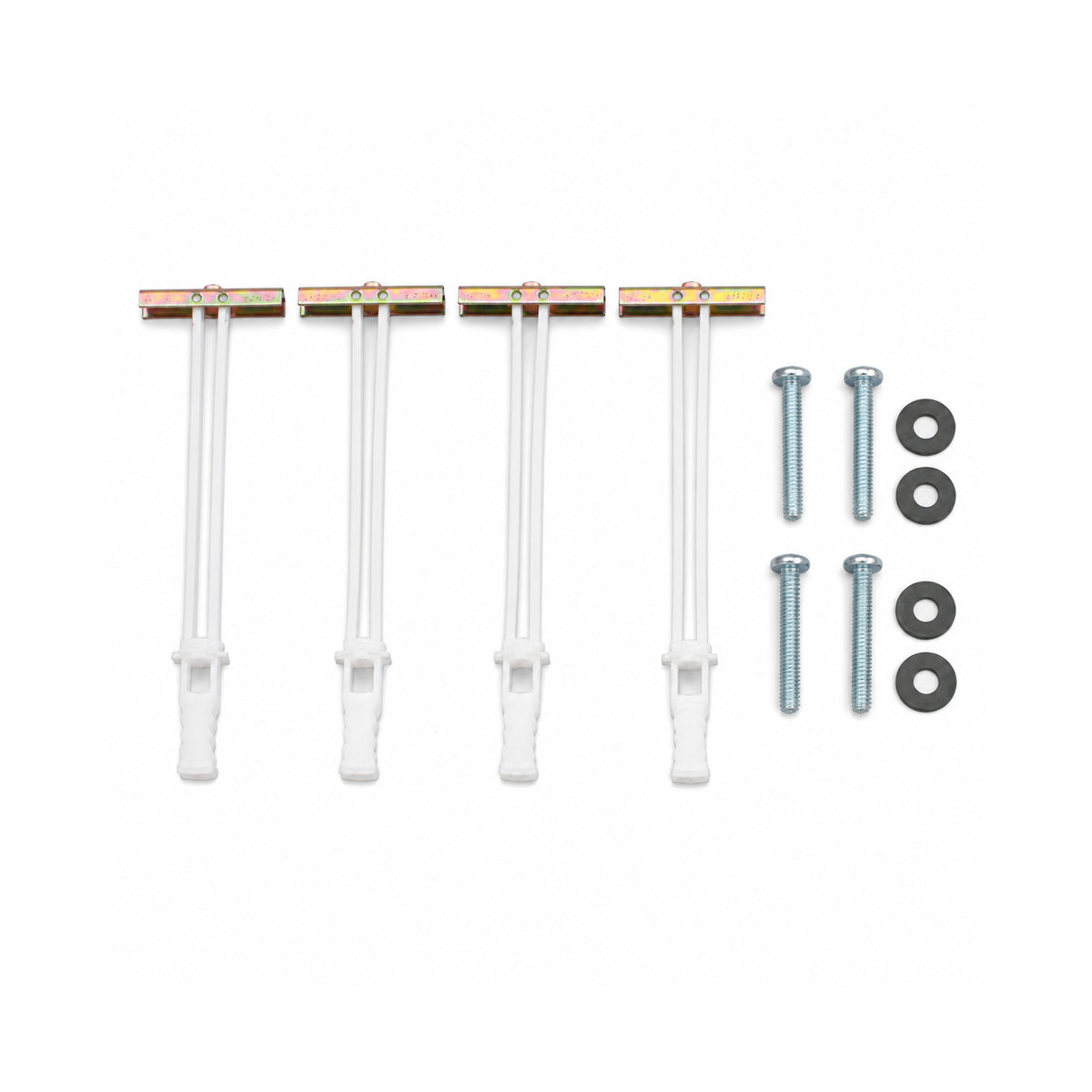

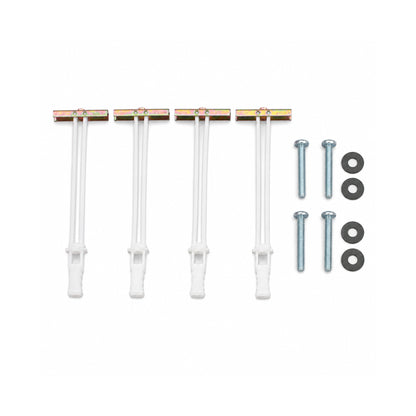

Package Includes

• 4 × 1/4"-20 Grade 5 screws
• 4 × 1/4"-20 SNAPTOGGLE anchors
• 4 × 1/4" washers
