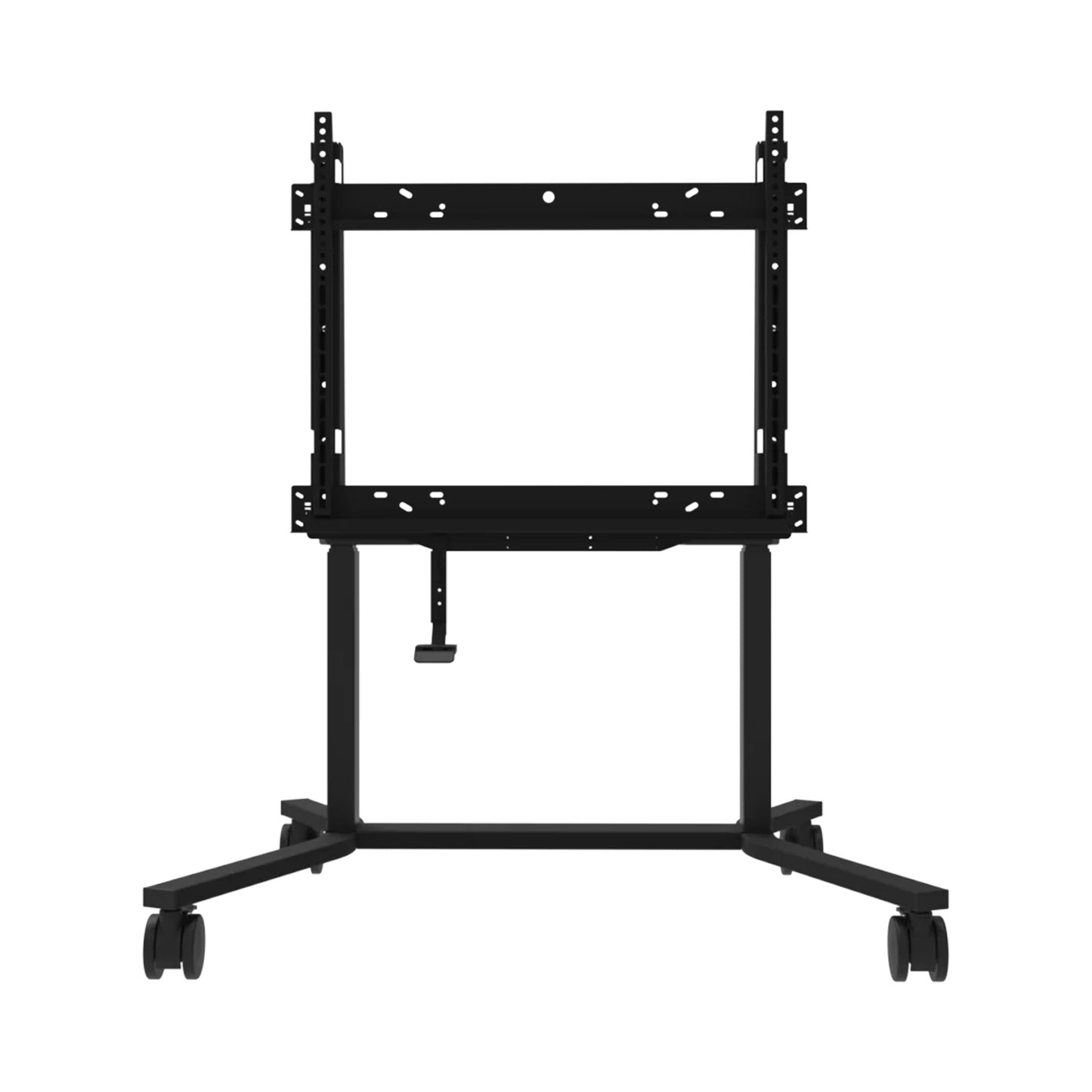

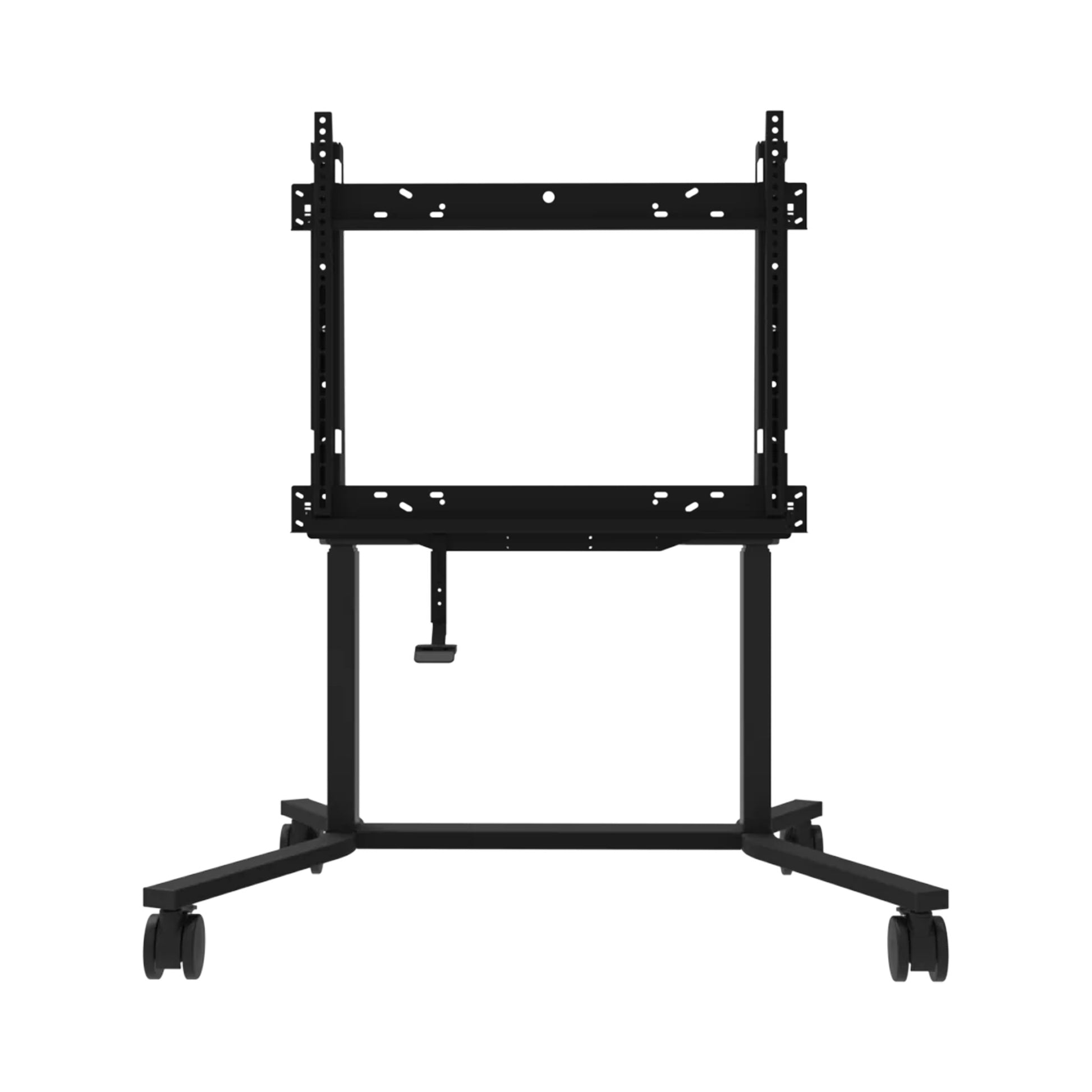

BalanceBox e·Box IV Motorized Height-Adjustable Mobile Stand – 487A24001

The e·Box® IV Motorized Height-Adjustable Mobile Stand – 487A24001 is a heavy-duty powered mobile mounting system designed for large interactive flat-panel displays. It combines smooth motorized height adjustment with a wide mobile base, allowing interactive displays to be moved between classrooms, meeting rooms, training areas, and other collaborative spaces.

The 487A24001 USA model provides 25.6" (650 mm) of motorized vertical travel at approximately 1.97"/sec (50 mm/sec) and supports display configurations weighing up to 308.6 lb (140 kg). It supports standard 16:9 displays up to 98", with BalanceBox also specifying compatibility with 21:9 ultra-wide displays up to 105".

Key Features

• 25.6" (650 mm) motorized height adjustment
• 308.6 lb (140 kg) maximum weight capacity
• Supports 16:9 displays up to 98"
• Supports 21:9 ultra-wide displays up to 105"
• Fast 1.97"/sec (50 mm/sec) adjustment speed
• Dual-column motorized lifting system
• Dual anti-collision safety system
• Integrated VESA mount up to 800 × 600 mm
• Four 4" (100 mm) wheels
• 2 locking + 2 non-locking wheels
• Wide open base provides wheelchair accessibility
• Heavy-duty powder-coated steel frame
• 400W maximum power consumption
• Only 0.1W standby power consumption
• CE and UL certified

Package Includes

• e·Box® IV Motorized Mobile Stand – 487A24001
• Integrated VESA Display Mount
• Motorized Dual-Column Lift System
• 4 × 4" (100 mm) Casters
• Wired Control System
• Assembly / Mounting Hardware
• Installation Documentation
