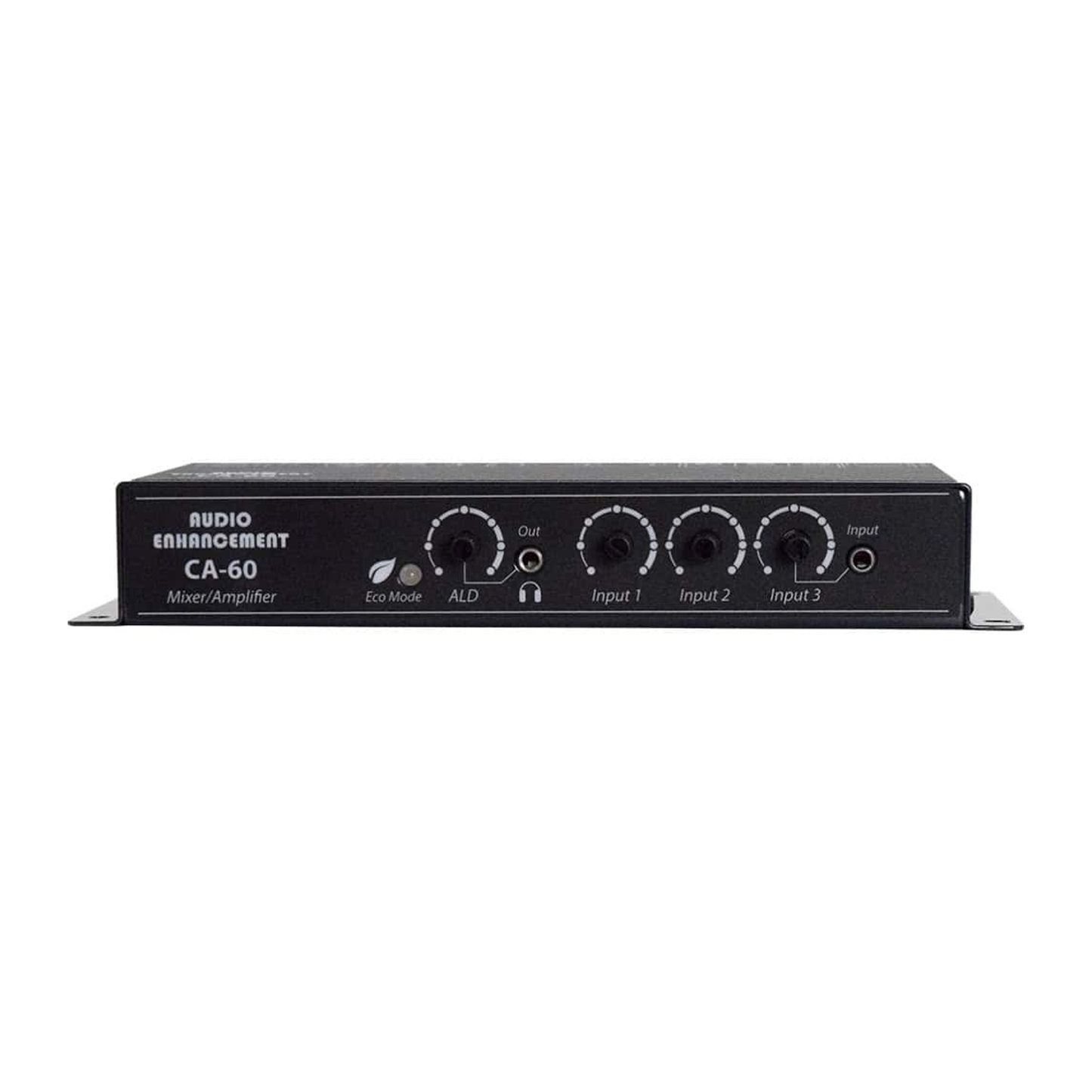

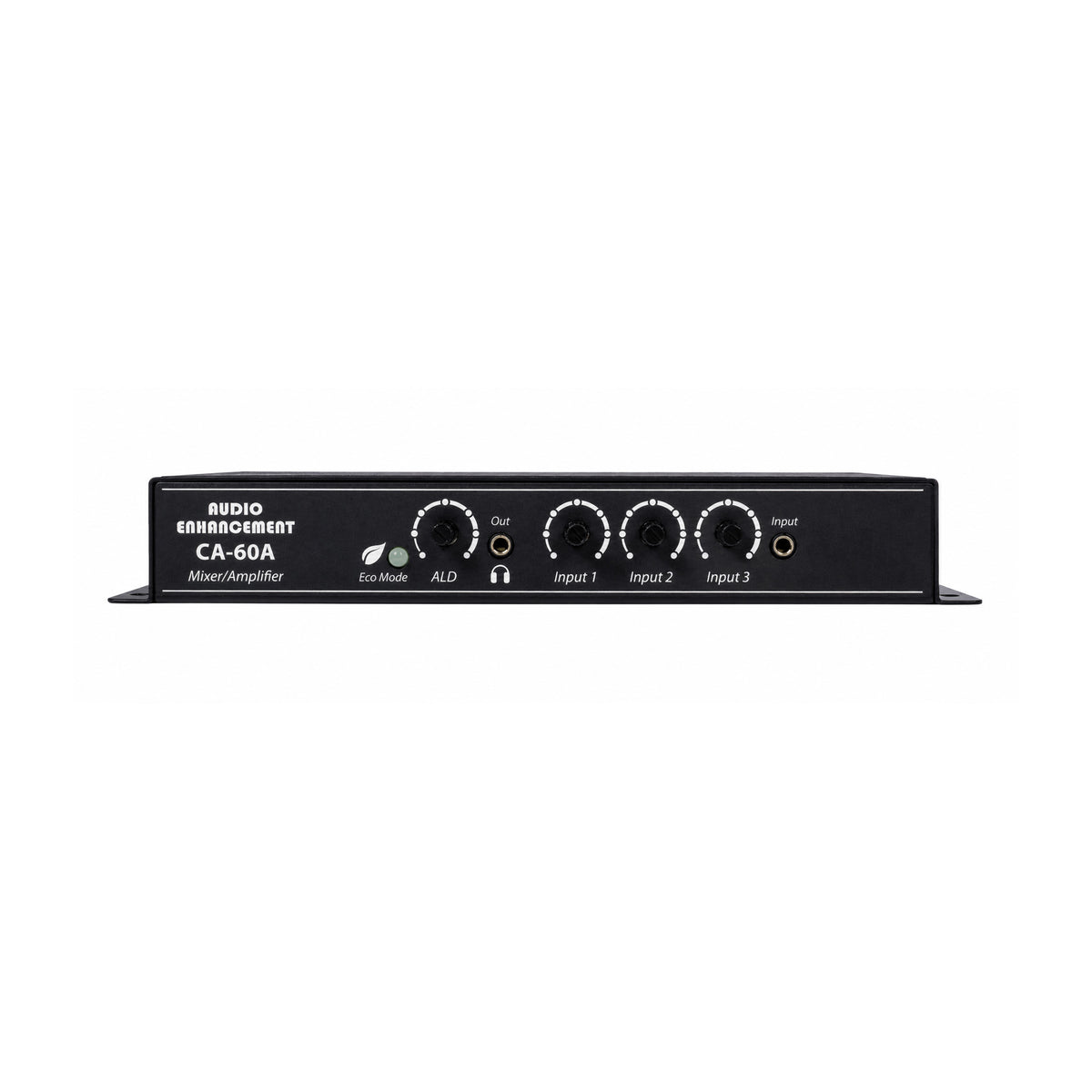

CA-60A Sentinel Amplifier with Power Supply - ST-AM-9001

PRODUCT INFORMATION

The Audio Enhancement CA-60A Sentinel Amplifier with Power Supply (ST-AM-9001) is a 24 V DC classroom amplifier designed to provide quality audio reinforcement for teachers, students, and multimedia sources. It features 50 W output power, multiple line-level inputs, a 3-band equalizer for tone control, PA mute override, assistive listening support, and an XD receiver input to integrate with Audio Enhancement wireless microphone systems. Eco Mode reduces power consumption when audio is inactive, making it efficient for everyday classroom use.

Note: Works with compatible Audio Enhancement XD wireless microphones when paired with an XD receiver.

50 W Classroom Amplification
Provides 50 W of audio power for classroom speaker systems.

24 V DC Power Supply Included
Operates via dedicated 24 V DC power for simple classroom installation.

Eco Mode
Automatically reduces power consumption when no signal is present to improve efficiency.

Multiple Line Inputs
(3) 3.5 mm TRS variable gain line inputs for external audio sources.

Line Output & Assistive Listening Support
Includes line output with front panel volume control and an assistive listening device (ALD) output.

PA Connector
Supports public address override, muting audio during announcements.

Accessory Remote Port
RJ45 accessory port accepts wall plate controllers like the WPA-03 for additional input and level control.

3-Band Equalizer
Bass, mid, and treble controls for tailored audio tuning.

XD Receiver Input
Provides RJ45 input for an external XD receiver (audio and power).

• CA-60A Sentinel Amplifier with Power Supply

• 24 V DC Power Supply

• Documentation / Quick Start Guide
