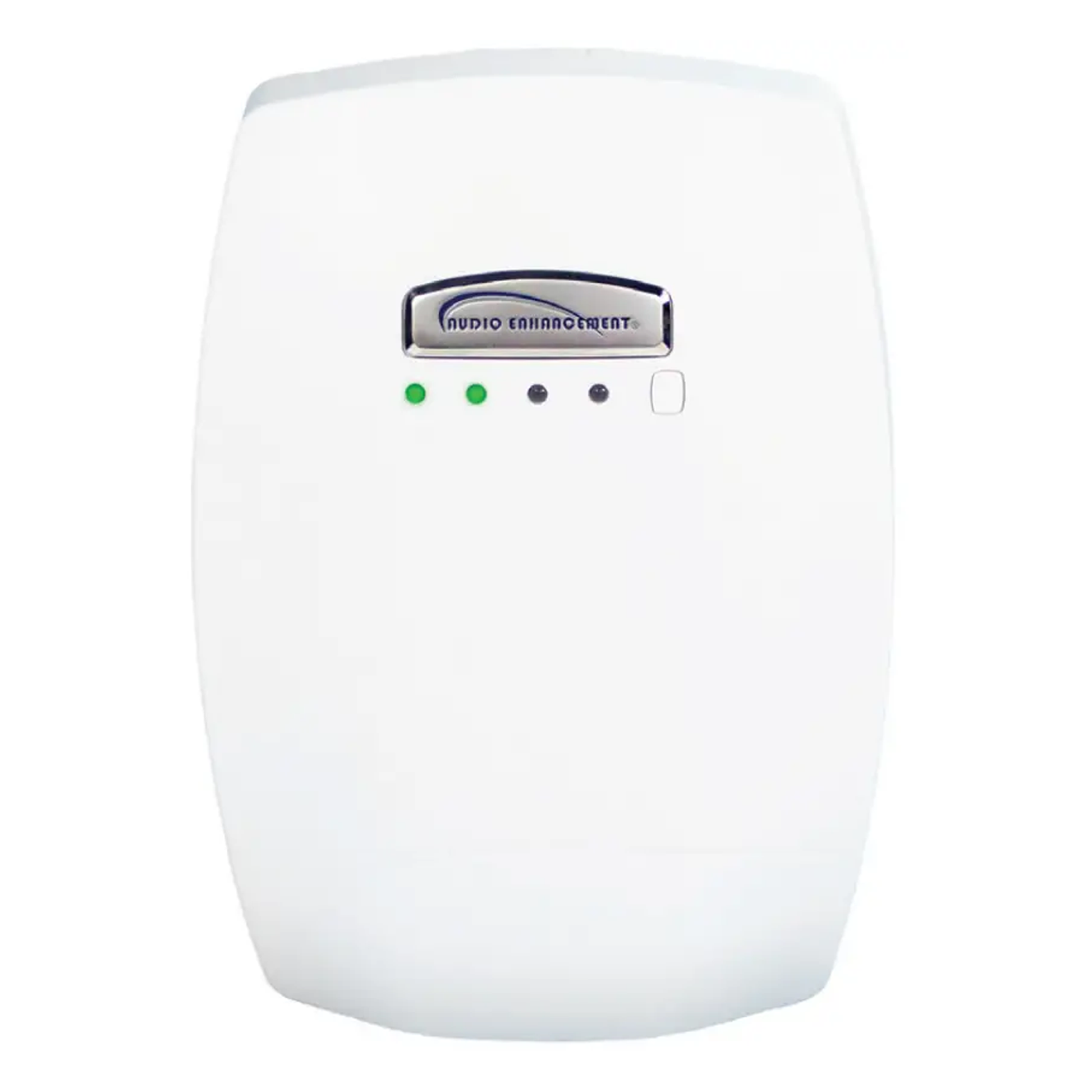

Audio Enhancement MS-700 Optimum Amplifier with Integrated XD Receiver - AM-3250

PRODUCT INFORMATION

The Audio Enhancement AM-3250, MS-700 Optimum Amplifier with Integrated XD Receiver is a fully networked classroom amplifier and wireless microphone receiver designed for modern educational environments. It integrates power amplification, wireless microphone reception (XD), network-based intercom, paging, emergency notification, and full-duplex audio communication — all using Power over Ethernet (PoE+). The unit provides flexible audio I/O, remote control ports, RS-232 connectivity, and robust system control features, making it an ideal centerpiece for classroom audio systems that require centralized amplification with networked capabilities.

Note: This unit requires PoE+ (Power over Ethernet) to operate and is intended to work with Audio Enhancement XD wireless microphones and compatible classroom audio infrastructure.

KEY FEATURES

Integrated Amplifier + Wireless Receiver
Combines a networked amplifier with a built-in XD wireless microphone receiver for streamlined classroom audio integration.

Power over Ethernet (PoE+) Operation
Runs entirely off PoE+ (IEEE 802.3af/at), simplifying installation and reducing the need for separate power wiring.

Full-Duplex Audio & Intercom
Supports full-duplex audio communications and network-based intercom/paging, ensuring clear two-way teacher/student interaction and announcement distribution.

Network-Based Emergency Notifications
Built-in emergency notification and paging features allow messages to be broadcast even during power interruptions when used with a UPS.

Flexible Audio Inputs & Outputs
Includes multiple 3.5 mm line-level audio inputs and outputs, balanced audio I/O, and amplified speaker outputs with a minimum 2 Ω load.

Equalization & Audio Control
Features a 5-band equalizer and automatic controls to optimize audio for different instructional content and rooms.

Remote Control & Integration Ports
(3) RJ-45 remote control ports, RS-232 communication for system integration, and discrete I/O ports support classroom automation and control systems.

SIP & VoIP Compatibility
Supports SIP RFC 3261 and integration with VoIP systems for advanced communications.

Durable Classroom Design
Constructed in robust ABS plastic with clear front-panel indicators for power, link, microphone status, and network activity.

PACKAGE INCLUDES

• MS-700 Optimum Amplifier with Integrated XD Receiver

• 3′ Cat6 Cable for Networking

• Documentation / Quick Start Guide
