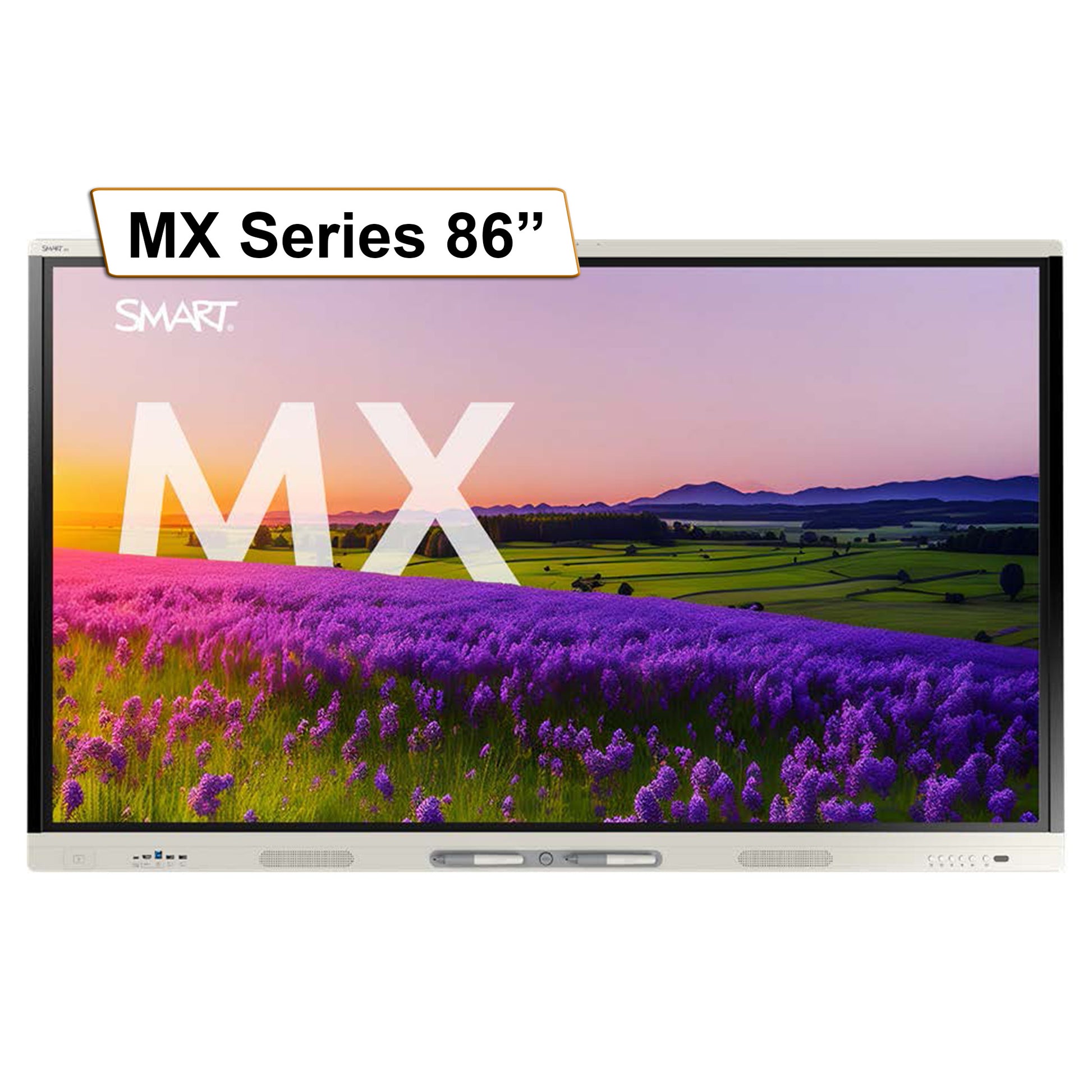

86" SMART Board MX-V5 Series Interactive Display with EDLA

86" SMART Board MX-V5 Series Interactive Display with EDLA

Regular price $5,499.00
Regular price Sale price $5,499.00
Sale Sold out
Shipping calculated at checkout.

SKU:MX286-V5

FEATURES
  • EDLA-Certified by Google
  • 4K Ultra HD, LED 50,000 hrs, zero-bonded glass
  • SMART iQ 4 embedded computing on Android 13
  • Integrated Microphone array
  • 2x 2W Speakers
  • Secure multi-user profiles
  • SMART 3-Year Assure Warranty
OVERVIEW

SMART Technologies MX286-V5 Interactive Display with EDLA

The SMART Board MX286-V5 is an advanced interactive display designed to facilitate dynamic collaboration and engagement in both educational and professional settings. This 86-inch 4K Ultra HD display combines cutting-edge touch technology with powerful collaborative tools, offering a seamless and interactive experience for users. The MX286-V5 is equipped with SMART's proprietary software, making it an ideal choice for classrooms, meeting rooms, and other collaborative spaces where interactivity and connectivity are crucial.

The display features HyPr Touch with InGlass™ technology, providing a highly accurate and responsive touch experience that supports multiple simultaneous users. The integrated software suite includes SMART Notebook and SMART Ink, enabling intuitive interaction and real-time annotation. With a robust set of connectivity options, including HDMI, USB, and wireless screen sharing, the MX286-V5 ensures compatibility with a wide range of devices and platforms.

Designed with user convenience in mind, the MX286-V5 includes an integrated pen tray, proximity sensors for automatic power management, and a sturdy aluminum frame for enhanced durability. Whether you're delivering a presentation, conducting a brainstorming session, or teaching a lesson, the SMART Board MX286-V5 delivers exceptional performance and versatility.

Key Features

  1. Stunning 4K Ultra HD Resolution:

    • Enjoy crisp, clear images with a resolution of 3840 x 2160, ensuring every detail is visible, whether you're viewing high-definition videos or detailed charts and graphs.
  2. Advanced Touch Technology:

    • The MX286-V5 features HyPr Touch™ with InGlass™ technology, providing a precise and natural touch experience. With support for up to 20 simultaneous touch points, multiple users can interact with the screen at once, making it perfect for collaborative projects.
  3. Integrated iQ Technology:

    • The display comes with SMART's iQ technology, integrating a full Android experience directly into the panel. Access a wide range of educational and business apps, browse the web, and use built-in collaboration tools without the need for an external computer.
  4. Enhanced Audio:

    • Built-in 20W front-facing speakers ensure clear and powerful audio, enhancing multimedia presentations and video calls.
  5. SMART Ink™:

    • Write and draw over any application or web browser with digital ink that remains legible and precise. The display also supports SMART Ink™ annotations, which can be saved directly into PDFs or other files for easy sharing.
  6. Flexible Connectivity:

    • Multiple connectivity options including HDMI, VGA, USB, and network connections, ensure compatibility with a wide range of devices. The display also supports wireless screen sharing, allowing users to present content from their laptops, tablets, or smartphones.
  7. Durable Design:

    • Built to withstand the rigors of daily use in busy classrooms and offices, the MX286-V5 features a rugged, anti-glare glass surface and a sleek, durable frame.

Conclusion

The SMART Board MX286-V5 interactive display is a powerful tool designed to enhance collaboration and engagement in any setting. With its large 86-inch 4K display, precise touch technology, and comprehensive software suite, it offers a versatile and intuitive solution for interactive presentations, lessons, and meetings. Its robust connectivity options, durable design, and user-friendly features make it an excellent choice for any modern collaborative environment.

SPECIFICATIONS

Display

  • Screen Size: 86 inches (diagonal)
  • Resolution: 4K UHD (3840 × 2160)
  • Aspect Ratio: 16:9
  • Backlight: LED
  • Brightness: 350 cd/m²
  • Contrast Ratio: 4000:1
  • Viewing Angle: 178°
  • Response Time: 8 ms
  • Glass: Fully heat-tempered, anti-glare, bonded

Interactive Experience

  • Touch Technology: HyPr Touch with Advanced IR
  • Touch Features:
    • Simultaneous tool differentiation
    • Object Awareness
    • Silktouch
  • Typical Touch Response Time: ≤ 5 ms
  • Frame Rate: ≥ 200 Hz
  • Accuracy: 1 mm
  • Minimum Object Size: 2 mm
  • Multitouch Capabilities:
    • 40 points for Windows
    • 32 points for Android
    • 20 points for Mac
    • 10 points for Chrome OS
  • Tools Included: Pens (×2), magnetic tool holders

Audio

  • Speakers: 2 integrated 20 W speakers
  • Microphone: Integrated linear six-microphone array with support for onboard acoustic echo cancellation

Connectivity

  • HDMI: 3 (HDMI 2.0)
  • USB: 4 (USB 3.0)
  • DisplayPort: 1
  • VGA: 1
  • Audio In/Out: 3.5 mm stereo
  • Ethernet: 1 (RJ45)
  • Wi-Fi: 802.11ac
  • Bluetooth: 5.0
  • NFC: Integrated RFID NFC reader/writer

Computing

  • Operating System: Android 11
  • CPU: Octa-core processor
  • RAM: 8 GB DDR4
  • Storage: 64 GB (expandable up to 576 GB)

Software

  • Included Software:
    • SMART Notebook
    • SMART Product Drivers and SMART Ink
    • SMART Remote Management (subscription for the length of the included warranty)
  • Optional Software: SMART Notebook Plus, Lumio

Additional Features

  • Convenience Buttons: Power, Home, Volume, Input select, Screen shade, Freeze frame
  • Sensors: Occupancy (available on some models), Ambient light, Infrared
  • Interactive Widgets: Templates, graphic organizers, manipulatives
  • File and App Libraries: Ability to run third-party applications
  • Cloud Storage Access: NFC sign-in to a SMART Account
  • Screen Sharing: Google Play Protect Certified (pending final testing), Google Play Store

Physical Specifications

  • Dimensions: 78.5" × 47.5" × 4.5" (199.4 cm × 120.7 cm × 11.4 cm)
  • Weight: 154 lbs (70 kg)
  • Mounting: VESA 800 × 600 mm

Power

  • Power Supply: 100-240V AC, 50/60Hz
  • Power Consumption: 250W typical, 0.5W standby
View full details
Product Attributes
BrandSMART Technologies
ModelMX286-V5
ConditionNew
Screen Size86"
Included Accessories2x Pens, power cable, 16' 5" USB 2.0 A to B cable, 6' USB 3.2 Type-C cable, 2x Wi-Fi Antennas, Remote control, AAA batteries, SMART ID Cards, Instructions documents
Physical Dimensions
Display Size (Diagonal)86"
Length3.5 in
Width78 in
Height47.25 in
Weight150.0 lb
Dimensions3.5" x 78" x 47.25"
Display & Visual
Display resolution 3840 x 2160, 4K ultra HD
Display technology LED
Native aspect ratio 16:9
Color White
Brightness (typical)400 cd/m²
Viewing Angle178°
Refresh Rate60Hz
Response Time≤ 8 ms
Anti-glare Coatingyes
Monitor shape Flat
Monitor specialized features Simultaneous tool differentiation, Object Awareness, Silktouch
Touch & Input Technology
Touch Points50
Annotation SoftwareSMART Ink®
Hardware & Components
Built-in Operating SystemAndroid version 13.0
OPS Slot SupportSMART PCM modules
Integrated Cameranot included
Integrated Microphone ArrayIntegrated linear six-microphone array with support for onboard acoustic echo cancellation
Integrated Speakers2 integrated 20 W speakers
Ambient Light Sensoryes
Performance & Power
RAM8 GB DDR4
Storage Capacity64GB
Power Consumption149 W
Operating Temperature Range41–95°F (5–35°C)
Connectivity & Ports
Device interface Wi-Fi, HDMI, USB
HDMI Inputs4x HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC suppor
USB-C Ports2x Type-C, 5x Type-A, 4x Type-B
Wired Ethernet Port1x RJ45
Wi-Fi & BluetoothWifi: IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, PSK, WPA3, and 802.1X EAP authentication protocols. Bluetooth: 5.2 Dual mode
Screen Casting Supportyes
Cloud Integrationyes
Compatible OS PlatformsWindows, Mac, Android, Chrome OS
Audio Out / In Ports 1x Stereo 3.5mm out, 1x Stereo 3.5mm in
Software & Licensing
Software LicensingiQ embedded Android OS, SMART Notebook, SMART Product Drivers and SMART Ink, SMART Remote Management
Compliance & Certifications
CertificationsUL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
Warranty3-year SMART Assure Warranty (2 to 4 year extension available)
